Dewalt Spare Part E-Book | Page 56

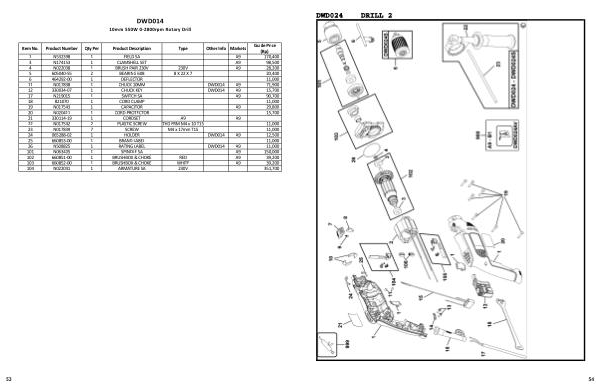

DWD014
10mm 550W 0-2800rpm Rotary Drill
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N532398 1 FIELD SA A9 170,400
3 N174153 1 CLAMSHELL SET A9 98,500
4 N022038 1 BRUSH PAIR 230V 230V A9 28,200
5 605040-55 2 BEARING 608 8 X 22 X 7 20,400
6 464292-00 1 DEFLECTOR 11,000
11 N017838 1 CHUCK 10MM DWD014 A9 71,900
12 330034-07 1 CHUCK KEY DWD014 A9 15,700
17 N219015 1 SWITCH SA A9 90,700
18 821070 1 CORD CLAMP 11,000
19 N017543 1 CAPACITOR A9 29,800
20 N020411 1 CORD PROTECTOR 15,700
21 330114-19 1 CORDSET A9 A9
22 N017542 2 PLASTIC SCREW THD FRM M4 x 10 T15 11,000
23 N017839 7 SCREW M4 x 17mm T15 11,000
24 065288-02 1 HOLDER DWD014 A9 12,500
25 660853-00 1 BRAND LABEL 11,000
26 N508825 1 RATING LABEL DWD014 A9 11,000
101 N063405 1 SPINDLE SA A9 150,000
102 660851-00 1 BRUSHBOX & CHOKE RED A9 39,200
103 660852-00 1 BRUSHBOX & CHOKE WHITE A9 39,200
104 N022041 1 ARMATURE SA 230V 351,700
53
