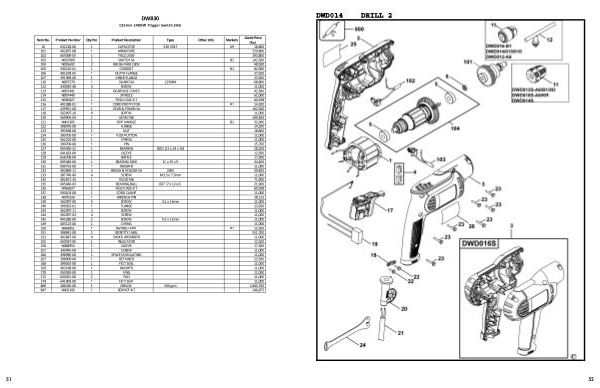

DW830
125mm 1400W Trigger Switch SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
16 632218-00 1 CAPACITOR 230 VOLT A9 18,800
101 402875-08 1 ARMATURE 529,800
102 654390-03 1 FIELD 230V 293,800
103 N015909 1 SWITCH SA B1 142,300
104 N035692 2 BRUSH PAIR 230V 48,500
105 330120-61 1 CORDSET B1 82,900
106 401678-05 1 OUTER FLANGE 37,500
107 391969-00 1 INNER FLANGE 23,500
110 N097579 1 GUARD SA 125MM 68,800
112 330045-46 3 SCREW 11,000
113 N097441 1 GEARCASE COVER 42,300
114 N097440 1 SPINDLE 61,000
115 N456827 1 FIELD CASE KIT 60,938
116 401088-01 1 CORD PROTECTOR B1 14,200
117 429951-00 1 GEAR & PINION SA 162,500
118 562097-10 4 SCREW 11,000
119 569905-04 1 GEARCASE 109,400
121 N401305 1 SIDE HANDLE B1 32,900
122 398976-00 1 FLANGE 14,200
123 393568-00 1 NUT 18,800
124 390705-00 1 LOCK BUTTON 11,000
125 562210-00 1 SPRING 11,000
126 390704-00 1 PIN 15,700
127 605040-22 1 BEARING 6001 (12 x 28 x 10) 28,200
128 641823-00 1 SLEEVE 12,500
129 656706-00 1 BAFFLE 17,300
130 605040-60 1 BEARING 6200 10 x 30 x 9 34,400
131 930753-00 1 WASHER 11,000
132 402869-11 2 BRUSH & HOLDER SA 230V 59,400
133 387746-00 4 SCREW M3.5 x 7.5mm 11,000
134 402871-24 1 FIELDCASE 71,900
135 605040-03 1 BEARING,BALL 607 (7 x 19 x 6) 21,900
136 N456827 1 FIELD CASE KIT 60,938
137 930103-00 1 CORD CLAMP 11,000
138 N079326 1 WRENCH PIN 28,125
139 562097-00 5 SCREW 4.2 x 13mm 11,000
140 399032-01 1 FLANGE 23,500
143 562097-11 2 SCREW 11,000
144 562097-03 4 SCREW 11,000
145 945280-00 2 SCREW 4.2 x 11mm 11,000
149 403123-00 1 O RING 11,000
150 N464851 1 RATING LABEL B1 12,500
151 398941-00 1 IDENTITY LABEL 551,700
152 402847-00 4 SHOCK ABSORBER 11,000
155 650937-00 1 INSULATOR 12,500
156 N068954 1 SLEEVE 17,300
157 330045-09 1 SCREW 11,000
166 398985-00 1 SPACER INSULATING 11,000
167 398909-00 1 RETAINER 23,500
168 399052-00 1 FELT SEAL 11,000
169 403148-00 1 WASHER 11,000
170 050050-00 1 RING 11,000
172 620051-00 2 PAD 11,000
174 641893-00 1 FELT SEAL 11,000
800 286436-00 1 GREASE 500 gms 1,840,700
847 N402106 1 SERVICE KIT 146,875
