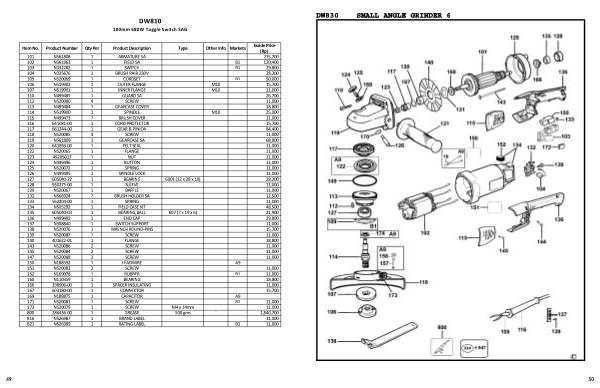

DW810
100mm 680W Toggle Switch SAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
101 N561808 1 ARMATURE SA 215,700
102 N561963 1 FIELD SA B1 120,400
103 N032282 1 SWITCH B1 29,800
104 N035676 1 BRUSH PAIR 230V 28,200
105 N520069 1 CORDSET B1 50,000
106 N519902 1 OUTER FLANGE M10 15,700
107 N519901 1 INNER FLANGE M10 11,000
110 N499485 1 GUARD SA 26,700
112 N520080 4 SCREW 11,000
113 N499484 1 GEARCASE COVER 18,800
114 N519900 1 SPINDLE M10 25,000
115 N499473 2 BRUSH COVER 11,000
116 641081-00 1 CORD PROTECTOR 15,700
117 661244-00 1 GEAR & PINION 84,400
118 N520085 4 SCREW 11,000
119 N561809 1 GEARCASE SA 68,800
120 641893-00 1 FELT SEAL 11,000
122 N520065 1 FLANGE 11,000
123 49205017 1 NUT 11,000
124 N499496 1 BUTTON 11,000
125 N520072 1 SPRING 11,000
126 N499495 1 SPINDLE LOCK 11,000
127 605040-22 1 BEARING 6001 (12 x 28 x 10) 28,200
128 930275-00 1 SLEEVE 11,000
129 N520067 1 BAFFLE 11,000
132 N566924 2 BRUSH HOLDER SA 12,500
133 562204-00 1 SPRING 11,000
134 N505292 1 FIELD CASE KIT 48,500
135 605040-03 1 BEARING,BALL 607 (7 x 19 x 6) 21,900
136 N499492 1 END CAP 29,800
137 N308840 1 SWITCH SUPPORT 11,000
138 N520076 1 WRENCH ROUND-PINS 15,700
139 N520087 1 SCREW 11,000
140 401622-01 1 FLANGE 18,800
143 N520086 2 SCREW 11,000
145 N520084 2 SCREW 11,000
147 N520088 2 SCREW 11,000
150 N188332 1 LEADWIRE A9
151 N520083 2 SCREW 11,000
152 N169078 1 RUBBER B1 11,000
160 N110359 1 BEARING 18,800
166 398906-00 1 SPACER INSULATING 11,000
167 603180-00 1 CONNECTOR 15,700
169 N188875 1 CAPACITOR A9
171 N520081 1 SCREW B1 11,000
173 N520079 1 SCREW M4 x 14mm 11,000
800 286436-00 1 GREASE 500 gms ` 1,840,700
816 N526987 1 BRAND LABEL 11,000
821 N526989 1 RATING LABEL B1 11,000
