Dewalt Spare Part E-Book

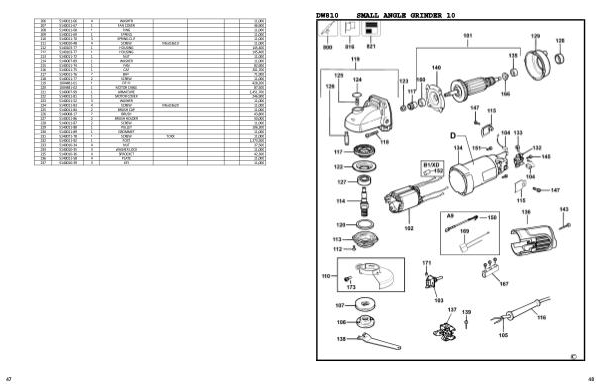

47 206 5140011-66 4 WASHER 11,000 207 5140011-67 1 FAN COVER 46,900 208 5140011-68 1 RING 11,000 209 5140011-69 1 SPRING 11,000 210 5140011-70 3 SPRING CLIP 11,000 211 5140010-48 4 SCREW M5x0.8x10 11,000 212 5140103-77 1 HOUSING 145,400 212 5140103-77 1 HOUSING 145,400 213 5140011-72 1 NUT 11,000 214 5140007-89 1 WASHER 11,000 215 5140011-74 1 FAN 82,900 216 5140011-75 1 CAP 201,700 217 5140011-76 2 BALL 71,900 218 5140011-77 2 SCREW 11,000 219 1004481-01 1 FIELD 428,200 220 1004481-02 1 MOTOR CABLE 87,500 221 5140007-99 1 ARMATURE 1,451,700 222 5140011-81 1 MOTOR COVER 246,900 223 5140011-52 3 WASHER 11,000 224 5140011-83 4 SCREW M5x0.8x20 11,000 225 5140011-84 2 BRUSH CAP 11,000 226 5140008-17 2 BRUSH 43,800 227 5140011-86 2 BRUSH HOLDER 50,000 228 5140011-87 2 SCREW 11,000 229 5140011-88 1 PULLEY 106,300 230 5140011-89 1 GROMMET 11,000 231 5140071-78 1 SCREW TORX 11,000 232 5140011-92 1 POST 1,273,500 233 5140010-34 4 NUT 37,500 234 5140010-35 4 WASHER LOCK 11,000 235 5140010-36 4 SPROCKET 42,300 236 5140011-58 4 PLATE 11,000 237 5140010-39 3 KEY 11,000

Dewalt Spare Part E-Book | Page 50
