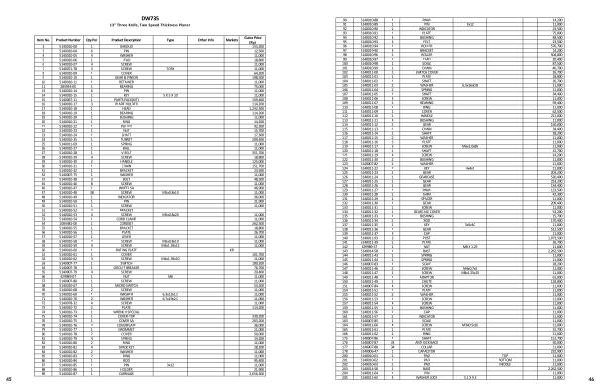

DW735
13” Three Knife, Two Speed Thickness Planer
45
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
2 5140010-00 1 SHROUD 153,200
3 5140010-04 6 PIN 12,500
4 5140010-05 4 WASHER 11,000
5 5140010-06 1 LEAD 18,800
6 5140010-07 4 SCREW 11,000
7 5140071-78 3 SCREW TORX 11,000
8 5140010-09 1 COVER 64,200
9 5140010-10 1 GEAR & PINION 198,500
10 5140010-11 1 RETAINER 11,000
11 285934-00 1 BEARING 75,000
13 5140010-14 6 PIN 11,000
14 5140010-15 1 KEY 5 X 5 X 10 11,000
15 5140067-11 1 PARTS PACK(KIT) 159,400
16 5140010-17 3 BLADE HOLDER 114,200
17 5140010-18 1 HEAD 1,242,300
18 5140010-19 1 BEARING 114,200
19 5140010-20 1 BUSHING 11,000
20 5140010-21 1 RING 14,200
21 5140010-22 1 PULLEY 92,300
22 5140010-23 1 NUT 15,700
23 5140010-24 1 SHAFT 17,300
24 5140010-25 1 TURRET 209,400
25 5140011-69 1 SPRING 11,000
26 5140010-27 1 BALL 11,000
27 5140010-28 1 V-BELT 351,700
28 5140010-29 4 SCREW 18,800
29 5140010-30 2 HANDLE 125,000
30 5140010-31 1 CHAIN 151,700
31 5140010-32 1 BRACKET 23,500
32 5140007-75 1 WASHER 11,000
37 5140010-38 3 BOLT 48,500
45 5140010-46 8 SCREW 11,000
46 5140010-47 1 WHEEL SA 46,900
47 5140010-48 38 SCREW M5x0.8x10 11,000
48 5140010-49 1 INDICATOR 36,000
49 5140010-50 1 PIN 21,900
50 5140010-51 1 SCREW 11,000
51 5140010-52 2 BRACKET
52 5140010-53 4 SCREW M5x0.8x20 11,000
53 5140010-54 1 CORD CLAMP 11,000
54 1004481-00 1 CORDSET 262,500
55 5140010-55 1 BRACKET 18,800
56 5140010-56 1 PLATE 26,700
57 5140010-57 1 LEVER 11,000
58 5140010-58 2 SCREW M5x0.8x10 11,000
59 5140010-59 4 SCREW M4x1.59x12 11,000
60 5140010-60 1 RATING PLATE KR
61 5140010-61 1 COVER 101,700
62 5140010-62 3 SCREW M4x1.59x10 11,000
63 5140007-77 1 SWITCH 189,200
64 5140007-78 1 CIRCUIT BREAKER 76,700
65 5140007-79 4 SCREW 20,400
66 429989-07 1 NUT M6 11,000
67 5140007-80 1 SCREW 11,000
68 5140010-67 1 MICRO SWITCH 53,200
69 5140010-68 2 SCREW 11,000
70 5140010-69 1 WASHER 6.3x13x1.0 11,000
71 5140010-70 2 WASHER 6.7x19x2.0 11,000
72 5140078-32 4 SCREW 11,000
73 5140010-72 2 PLATE 114,200
74 5140010-73 1 WRENCH SPECIAL
75 5140010-74 1 COVER-TOP 339,200
76 5140010-75 1 COVER SA 203,200
78 5140010-76 2 COVERPLATE 36,000
79 5140010-77 1 GROMMET 11,000
80 5140010-78 2 COVER 50,000
81 5140010-79 4 SPRING 14,200
82 5140010-80 2 RING 11,000
83 5140010-81 4 SPROCKET 28,200
84 5140010-82 2 WASHER 11,000
85 5140010-83 2 RING 11,000
86 5140010-84 1 ROD 95,400
87 5140010-85 1 PIN 3x12 11,000
88 5140010-86 1 HOLDER 21,900
89 5140010-87 1 CARRIAGE 2,656,300
