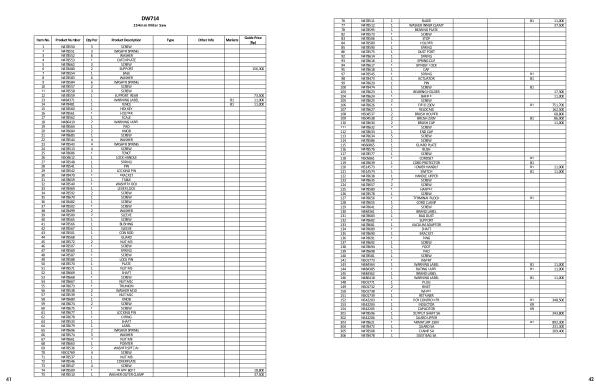

DW714
254mm Miter Saw
41
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N478550 3 SCREW
2 N478551 3 WASHER SPRING
3 N478552 6 WASHER
4 N478553 1 CATCHPLATE
5 N478662 3 SCREW
6 N478480 2 SUPPORT 156,300
7 N478554 1 BASE
8 N478583 6 WASHER
9 N478584 6 WASHER SPRING
10 N478557 2 SCREW
11 N478558 3 SCREW
12 N478559 1 SUPPORT. REAR 73,500
13 N484371 1 WARNING LABEL B1 11,000
14 N478481 1 FENCE B1 11,000
15 N478560 1 HEX KEY
16 N478561 1 HOLDER
17 N478562 1 SCALE
18 N486410 2 WARNING LABEL
19 N478564 1 PAD
20 N478684 2 KNOB
21 N478685 1 SCREW
22 N478544 4 WASHER
23 N478543 4 WASHER SPRING
24 N478513 4 SCREW
25 N478686 1 FENCE
26 N504612 1 LOCK HANDLE
27 N478548 1 SPRING
28 N478541 1 PIN
29 N478542 1 LOCKING PIN
30 N478470 1 BRACKET
31 N478659 1 TABLE
32 N478540 1 WASHER LOCK
33 N478469 1 LEVER LOCK
34 N478592 2 SCREW
35 N478670 1 SCREW
36 N478482 1 SCREW
37 N478502 1 SCREW
38 N478499 2 WASHER
39 N478500 2 SLEEVE
40 N478565 1 SCREW
41 N478566 1 BUSHING
42 N478567 1 SLEEVE
43 N478501 1 CON ROD
44 N478568 1 GUARD
45 N478572 2 NUT M6
46 N478507 1 SCREW
47 N478569 1 SPRING
48 N478587 1 SCREW
49 N478588 1 LOCK PIN
50 N478570 1 PLATE
51 N478571 1 NUT M5
52 N478669 1 SHAFT
53 N478668 1 SCREW
54 N478667 1 NUT M10
55 N478673 1 TRUNION
56 N478538 2 WASHER M10
57 N478539 1 NUT M10
58 N478680 1 KNOB
59 N478674 2 SCREW
60 N478675 1 SCREW
61 N478677 1 LOCKING PIN
62 N478678 1 O RING
63 N478533 1 SHAFT
64 N478679 1 LABEL
65 N478696 2 WASHER SPRING
66 N478574 3 WASHER
67 N478661 2 NUT M8
68 N478663 1 POINTER
69 N478536 2 WASHER SPECIAL
70 N501769 4 SCREW
71 N478537 1 NUT M8
72 N478546 1 COVERPLATE
73 N478547 4 SCREW
74 N478509 1 BLADE BOLT 18,800
75 N478510 1 WASHER OUTER CLAMP 37,500
