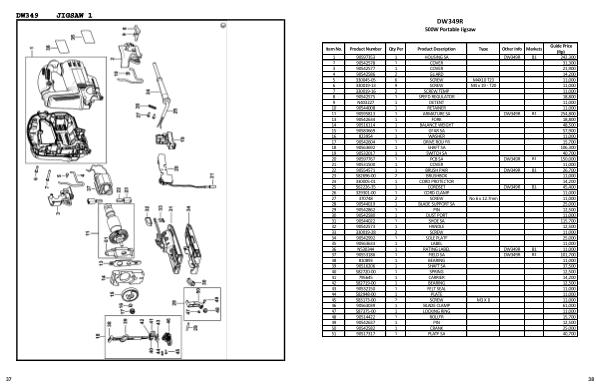

DW349R
500W Portable Jigsaw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90597353 1 HOUSING SA DW349R B1 242,300
2 90542578 1 COVER 31,300
3 90542577 1 COVER 21,900
4 90542586 2 GUARD 14,200
5 330045-05 6 SCREW M4X10 T20 11,000
6 330019-13 9 SCREW M4 x 19 - T20 11,000
7 330019-16 2 SCREW.TEMP 11,000
8 90542575 1 SPEED REGULATOR 18,800
9 N403227 1 DETENT 11,000
10 90544008 1 RETAINER 11,000
11 90595813 1 ARMATURE SA DW349R B1 254,800
13 90542634 1 FORK 18,800
14 90516114 1 BALANCE WEIGHT 48,500
15 90583669 1 GEAR SA 57,900
16 823954 1 WASHER 11,000
17 90542604 1 DRIVE ROLLER 15,700
18 90563692 1 SHAFT SA 106,300
19 90532017 1 SWITCH SA 40,700
20 90597767 1 PCB SA DW349R B1 150,000
21 90531500 1 COVER 11,000
22 90554571 1 BRUSH PAIR DW349R B1 26,700
23 582696-00 2 BRUSHBOX 11,000
24 330005-01 1 CORD PROTECTOR 14,200
25 562226-35 1 CORDSET DW349R B1 45,400
26 329301-00 1 CORD CLAMP 11,000
27 370748 2 SCREW No 6 x 12.7mm 11,000
28 90544019 1 BLADE SUPPORT SA 25,000
29 90542862 1 PIN 12,500
30 90542580 1 DUST PORT 11,000
31 90544022 1 SHOE SA 115,700
32 90542573 1 HANDLE 12,500
33 330019-28 2 SCREW 11,000
34 90542992 1 SOLE PLATE 25,000
35 90563633 1 LABEL 11,000
36 N530344 1 RATING LABEL DW349R B1 11,000
37 90553186 1 FIELD SA DW349R B1 101,700
38 810893 1 BEARING 11,000
39 90516206 1 SHAFT SA 37,500
40 582720-00 1 SPRING 12,500
41 795645 1 CARRIER 14,200
42 582719-00 1 BEARING 12,500
43 90532150 1 FELT SEAL 11,000
44 582948-00 1 PLATE 11,000
45 583173-00 2 SCREW M3 X 8 11,000
46 90563039 1 BLADE CLAMP 61,000
47 587375-00 1 LOCKING RING 11,000
48 90514422 1 ROLLER 15,700
49 90542637 1 PIN 12,500
50 90542582 1 CRANK 25,000
51 90517317 1 PLATE SA 40,700
