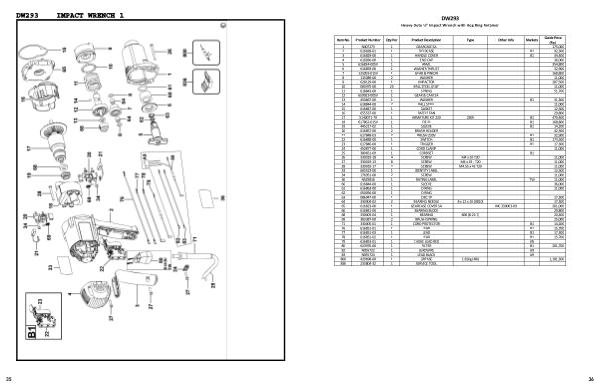

DW293
Heavy-Duty ½” Impact Wrench with Hog Ring Retainer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N407273 1 GEARCASE SA 175,000
2 616828-01 1 FIELDCASE B1 92,300
3 616829-00 1 HANDLE COVER B1 34,400
4 616830-00 1 END CAP 36,000
5 616834-00SV 1 ANVIL 354,800
6 616859-00 1 WASHER THRUST 32,900
7 135093-01SV 1 GEAR & PINION 168,800
8 135089-00 2 WASHER 11,000
9 628129-00 1 IMPACTOR 287,500
10 000475-00 25 BALL STEEL 3/16" 11,000
11 618843-00 1 SPRING 51,700
12 659923-00SV 1 GEAR & CAM SA
13 450667-00 1 WASHER B1 31,300
14 618844-00 2 BALL STEEL 11,000
15 616847-00 1 GASKET 12,500
16 655537-00 1 BAFFLE FAN 29,800
17 5140071-79 1 ARMATURE KIT 220 230V B1 470,400
18 617862-01SV 1 FIELD B1 168,800
19 445217-02 1 SLEEVE B1 14,200
20 616857-00 2 BRUSH HOLDER 42,300
21 617848-03 2 BRUSH 230V B1 32,900
22 616848-00 1 SWITCH B1 173,500
23 617846-00 1 TRIGGER B1 17,300
24 450877-00 1 CORD CLAMP 11,000
25 380651-09 1 CORDSET B1
26 330019-18 4 SCREW M4 x 50 T20 11,000
27 330019-13 8 SCREW M4 x 19 - T20 11,000
28 330019-17 2 SCREW M4.55 x 45 T20 11,000
33 605523-00 1 IDENTITY LABEL 12,500
34 176951-00 2 SCREW 11,000
36 N529816 1 RATING LABEL TW 11,000
60 616844-00 1 SLEEVE 36,000
61 616863-00 1 O RING 11,000
62 050056-00 1 O RING
63 086947-00 1 CIRCLIP 17,300
64 330004-02 2 BEARING NEEDLE 8 x 12 x 10 (0810) 17,300
65 616823-00 1 GEARCASE COVER SA INC 330003-09 261,000
66 616841-00 1 BEARING BLOCK 29,800
68 330003-04 1 BEARING 608 (8-22-7) 20,400
69 383387-00 2 BRUSH SPRING 25,000
71 330005-01 1 CORD PROTECTOR B1 14,200
76 616851-01 1 LEAD B1 15,700
77 616851-03 1 LEAD B1 17,300
78 616851-02 1 LEAD B1 15,700
79 616853-01 1 CHOKE LEAD RED KR
80 623976-00 1 FILTER B1 201,700
82 N055722 1 LEADWIRE A9
83 N055724 1 LEAD BLACK A9
800 429698-00 1 GREASE 1.81kg (4lb) 1,181,300
836 233804-32 1 SERVICE TOOL
