Dewalt Spare Part E-Book | Page 37

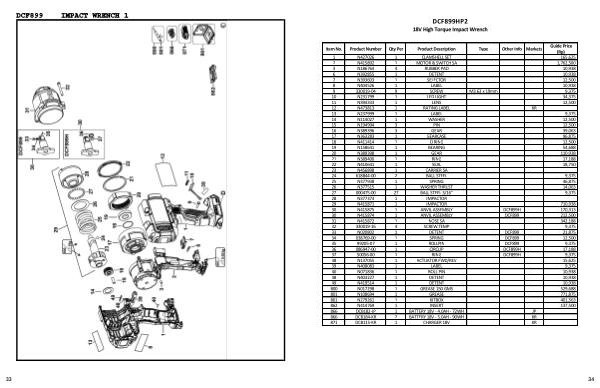

DCF899HP2
18V High Torque Impact Wrench
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N427026 1 CLAMSHELL SET 165,625
2 N415892 1 MOTOR & SWITCH SA 1,762,500
3 N186764 4 RUBBER PAD 10,938
6 N392855 1 DETENT 10,938
7 N393603 1 SELECTOR 12,500
8 N404526 1 LABEL 10,938
9 330019-04 9 SCREW M3.63 x 19mm 9,375
10 N231799 1 LED LIGHT 34,375
11 N394333 1 LENS 12,500
12 N473813 1 RATING LABEL KR
13 N237999 1 LABEL 9,375
14 N114027 1 WASHER 12,500
15 N194994 3 PIN 12,500
16 N389396 3 GEAR 39,063
17 N363283 1 GEARCASE 96,875
18 N411414 1 O RING 12,500
19 N158641 1 BEARING 54,688
20 N389398 1 GEAR 110,938
21 N389400 1 RING 17,188
22 N410641 1 SEAL 18,750
23 N456898 1 CARRIER SA
24 618844-00 2 BALL STEEL 9,375
25 N377938 1 SPRING 46,875
26 N377515 1 WASHER THRUST 14,063
27 000475-00 27 BALL STEEL 3/16" 9,375
28 N377373 1 IMPACTOR
29 N415871 1 IMPACTOR 710,938
30 N415875 1 ANVIL ASSEMBLY DCF899H 170,313
30 N415874 1 ANVIL ASSEMBLY DCF899 212,500
31 N415872 1 NOSE SA 342,188
32 330019-16 4 SCREW.TEMP 9,375
33 N020802 1 DETENT DCF899 21,875
34 038769-00 1 SPRING DCF899 12,500
35 99205-07 1 ROLLPIN DCF899 9,375
36 086947-00 1 CIRCLIP DCF899H 17,188
37 50056-00 1 RING DCF899H 9,375
38 N137055 1 ACTUATOR FWD/REV 15,625
39 N408083 1 LABEL 9,375
40 N071836 1 ROLL PIN 10,938
48 N403227 1 DETENT 10,938
49 N419514 1 DETENT 10,938
800 N017298 1 GREASE 150 GMS 529,688
801 N108694 1 GREASE 771,875
861 N279261 1 KITBOX 401,563
862 N414769 1 INSERT 137,500
866 DCB182-JP 1 BATTERY 18V - 4.0AH - 72WH JP
866 DCB184-KR 2 BATTERY 18V - 5.0AH - 90WH KR
871 DCB115-KR 1 CHARGER 18V KR
34
