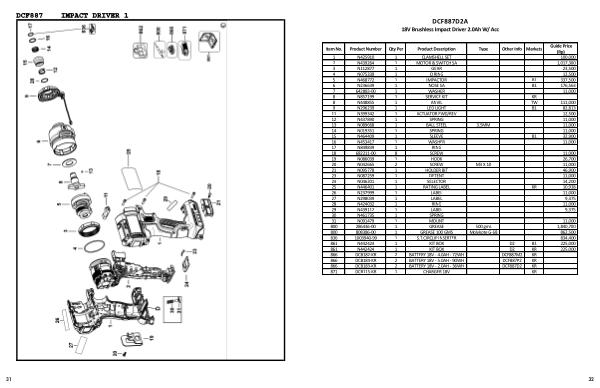

Dewalt Spare Part E-Book | Page 35

DCF887D2A
18V Brushless Impact Driver 2.0Ah W/ Acc
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N425910 1 CLAMSHELL SET 100,000
2 N439264 1 MOTOR & SWITCH SA 1,017,300
3 N112877 1 GEAR 23,500
4 N075339 1 O RING 12,500
5 N468772 1 IMPACTOR B1 337,500
6 N236639 1 NOSE SA B1 176,563
7 642883-00 1 WASHER 11,000
8 N857199 1 SERVICE KIT KR
8 N448855 1 ANVIL TW 111,000
9 N296239 1 LED LIGHT B1 82,813
11 N399342 1 ACTUATOR FWD/REV 12,500
12 N437890 1 SPRING 11,000
13 N089668 1 BALL STEEL 3.5MM 11,000
14 N019351 1 SPRING 11,000
15 N464409 1 SLEEVE B1 32,900
16 N453417 1 WASHER 11,000
17 N849839 1 RING
18 682211-00 8 SCREW 11,000
19 N086039 1 HOOK 26,700
20 N042665 2 SCREW M3 X 10 11,000
21 N095778 1 HOLDER BIT 46,900
23 N087259 1 DETENT 11,000
24 N046201 1 SELECTOR 14,200
25 N446401 1 RATING LABEL KR 10,938
26 N237999 1 LABEL 11,000
27 N298039 1 LABEL 9,375
28 N424032 1 RING 11,000
29 N439112 1 LABEL 9,375
30 N461735 1 SPRING
31 N091479 1 MOUNT 11,000
800 286436-00 1 GREASE 500 gms 1,840,700
800 808386-00 1 GREASE 100 GMS Molykote G-68 862,500
836 1003940-99 1 S.T.CIRCLIP INSERTER 834,400
861 N442424 1 KIT BOX D2 B1 225,000
861 N442424 1 KIT BOX D2 KR 225,000
866 DCB182-KR 2 BATTERY 18V - 4.0AH - 72WH DCF887M2 KR
866 DCB184-KR 2 BATTERY 18V - 5.0AH - 90WH DCF887P2 KR
866 DCB183-KR 2 BATTERY 18V - 2.0AH - 36WH DCF887D2 KR
871 DCB115-KR 1 CHARGER 18V KR
32
