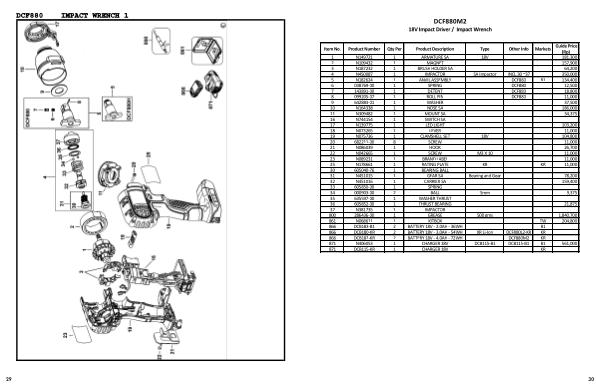

DCF880M2
18V Impact Driver / Impact Wrench
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N149721 1 ARMATURE SA 18V 181,300
2 N109432 1 MAGNET 157,900
3 N187232 1 BRUSH HOLDER SA 64,200
4 N450087 1 IMPACTOR SA Impactor INCL.30 ~37 350,000
5 N182624 1 ANVIL ASSEMBLY DCF880 B1 134,400
6 038769-00 1 SPRING DCF880 12,500
7 143891-00 1 DETENT DCF880 18,800
8 099205-07 1 ROLL PIN DCF880 11,000
9 642883-01 1 WASHER 37,500
10 N164338 1 NOSE SA 186,000
11 N309482 1 MOUNT SA 34,375
16 N744154 1 SWITCH SA
17 N139775 1 LED LIGHT 103,200
18 N073265 1 LEVER 11,000
19 N075736 1 CLAMSHELL SET 18V 104,800
20 682211-00 8 SCREW 11,000
21 N086039 1 HOOK 26,700
22 N042665 1 SCREW M3 X 10 11,000
23 N089231 1 BRAND LABEL 11,000
25 N178661 1 RATING PLATE KR KR 11,000
30 605040-76 1 BEARING,BALL
31 N451015 1 GEAR SA Bearing and Gear 78,200
32 N451016 1 CARRIER SA 159,400
33 605850-00 1 SPRING
34 000903-00 2 BALL 5mm 9,375
35 635597-00 1 WASHER THRUST
36 605852-00 1 THRUST BEARING 21,875
37 N381735 1 IMPACTOR
800 286436-00 1 GREASE 500 gms 1,840,700
861 N068611 1 KITBOX TW 204,800
866 DCB183-B1 2 BATTERY 18V - 2.0AH - 36WH B1
866 DCB180-KR 2 BATTERY 18V - 3.0AH - 54WH XR Li-Ion DCF880L2-KR KR
866 DCB182-KR 2 BATTERY 18V - 4.0AH - 72WH DCF880M2 KR
871 N406053 1 CHARGER 18V DCB115-B1 DCB115-B1 B1 561,000
871 DCB115-KR 1 CHARGER 18V KR
