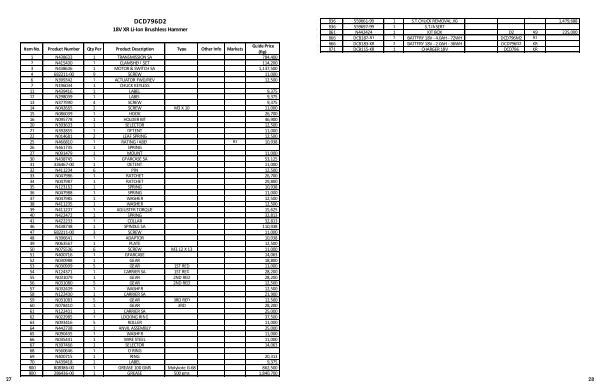

DCD796D2
18V XR Li-Ion Brushless Hammer
27
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N438603 1 TRANSMISSION SA 784,400
2 N415400 1 CLAMSHELL SET 114,200
3 N438606 1 MOTOR & SWITCH SA 1,137,500
4 682211-00 9 SCREW 11,000
6 N399342 1 ACTUATOR FWD/REV 12,500
7 N196034 1 CHUCK KEYLESS
11 N439416 1 LABEL 9,375
12 N298039 1 LABEL 9,375
13 N377990 4 SCREW 9,375
14 N042665 2 SCREW M3 X 10 11,000
15 N086039 1 HOOK 26,700
16 N095778 1 HOLDER BIT 46,900
20 N393603 1 SELECTOR 12,500
21 N392855 1 DETENT 11,000
22 N014681 2 LEAF SPRING 12,500
25 N466810 1 RATING LABEL B1 10,938
26 N461735 1 SPRING
27 N091479 1 MOUNT 11,000
30 N438745 1 GEARCASE SA 53,125
31 326467-00 1 DETENT 11,000
32 N411204 6 PIN 12,500
33 N047986 1 RATCHET 26,700
34 N047987 1 RATCHET 29,800
35 N123162 1 SPRING 10,938
36 N047988 1 SPRING 11,000
37 N047985 1 WASHER 12,500
38 N411205 1 WASHER 12,500
39 N411207 1 ADJUSTER TORQUE 15,625
40 N422472 1 SPRING 32,813
41 N422233 1 COLLAR 32,813
46 N438748 1 SPINDLE SA 110,938
47 682211-00 3 SCREW 11,000
48 N396641 1 ADAPTOR 10,938
49 N063567 1 PLATE 12,500
50 N075506 6 SCREW M3.12 X 13 11,000
51 N400716 1 GEARCASE 14,063
52 N030988 1 GEAR 18,800
53 N030999 5 GEAR 1ST RED 11,000
54 N124371 1 CARRIER SA 1ST RED 28,200
55 N031079 1 GEAR 2ND RED 28,200
56 N031080 5 GEAR 2ND RED 12,500
57 N032409 1 WASHER 12,500
58 N122400 1 CARRIER SA 21,900
59 N031083 5 GEAR 3RD RED 12,500
60 N078410 1 GEAR 3RD 28,200
61 N122401 1 CARRIER SA 25,000
62 N022985 1 LOCKING RING 37,500
63 N093416 5 ROLLER 11,000
64 N442738 1 ANVIL ASSEMBLY 25,000
65 N090435 1 WASHER 11,000
66 N035441 1 WIRE STEEL 11,000
67 N397466 1 SELECTOR 14,063
68 N560646 1 O RING
69 N400715 1 RING 20,313
70 N439418 1 LABEL 9,375
800 808386-00 1 GREASE 100 GMS Molykote G-68 862,500
800 286436-00 1 GREASE 500 gms 1,840,700
