Dewalt Spare Part E-Book

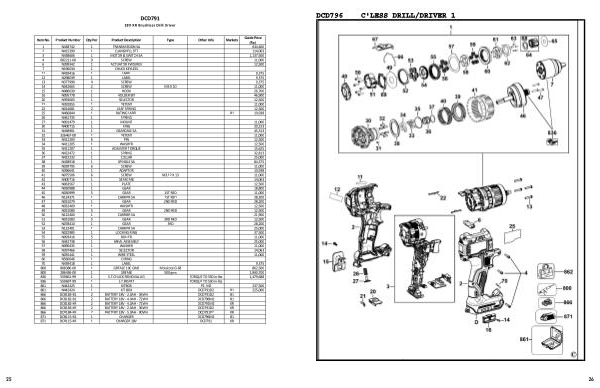

DCD791 18V XR Brushless Drill Driver Item No. Product Number Qty Per Product Description Type Other Info Markets Guide Price (Rp) 1 N438742 1 TRANSMISSION SA 634,400 2 N415399 1 CLAMSHELL SET 114,063 3 N438606 1 MOTOR & SWITCH SA 1,137,500 4 682211-00 9 SCREW 11,000 6 N399342 1 ACTUATOR FWD/REV 12,500 7 N196034 1 CHUCK KEYLESS 11 N439416 1 LABEL 9,375 12 N298039 1 LABEL 9,375 13 N377990 4 SCREW 9,375 14 N042665 2 SCREW M3 X 10 11,000 15 N086039 1 HOOK 26,700 16 N095778 1 HOLDER BIT 46,900 20 N393603 1 SELECTOR 12,500 21 N392855 1 DETENT 11,000 22 N014681 2 LEAF SPRING 12,500 25 N466844 1 RATING LABEL B1 10,938 26 N461735 1 SPRING 27 N091479 1 MOUNT 11,000 30 N400715 1 RING 20,313 31 N438901 1 GEARCASE SA 45,313 32 326467-00 1 DETENT 11,000 33 N411204 6 PIN 12,500 34 N411205 1 WASHER 12,500 35 N411207 1 ADJUSTER TORQUE 15,625 36 N422472 1 SPRING 32,813 37 N422232 1 COLLAR 25,000 38 N438918 1 SPINDLE SA 84,375 39 N039795 6 SCREW 11,000 40 N396641 1 ADAPTOR 10,938 41 N075506 6 SCREW M3.12 X 13 11,000 42 N400716 1 GEARCASE 14,063 43 N063567 1 PLATE 12,500 44 N030988 1 GEAR 18,800 45 N030999 5 GEAR 1ST RED 11,000 46 N124371 1 CARRIER SA 1ST RED 28,200 47 N031079 1 GEAR 2ND RED 28,200 48 N032409 1 WASHER 12,500 49 N031080 5 GEAR 2ND RED 12,500 50 N122400 1 CARRIER SA 21,900 51 N031083 5 GEAR 3RD RED 12,500 52 N078410 1 GEAR 3RD 28,200 53 N122401 1 CARRIER SA 25,000 54 N022985 1 LOCKING RING 37,500 55 N093416 5 ROLLER 11,000 56 N442738 1 ANVIL ASSEMBLY 25,000 57 N090435 1 WASHER 11,000 58 N397466 1 SELECTOR 14,063 59 N035441 1 WIRE STEEL 11,000 60 N560646 1 O RING 70 N439418 1 LABEL 9,375 800 808386-00 1 GREASE 100 GMS Molykote G-68 862,500 800 286436-00 1 GREASE 500 gms 1,840,700 836 559661-99 1 S.T.CHUCK REMOVAL JIG TORQUE TO 550 in-lbs 1,479,688 836 559697-99 1 S.T.INSERT TORQUE TO 550 in-lbs 861 N442425 1 KITBOX P2, M2 237,500 861 N442424 1 KIT BOX DCD791D2 B1 225,000 866 DCB183-B1 2 BATTERY 18V - 2.0AH - 36WH DCD791D2 B1 866 DCB182-B1 2 BATTERY 18V - 4.0AH - 72WH DCD796M2 B1 866 DCB182-KR 2 BATTERY 18V - 4.0AH - 72WH DCD791M2 KR 866 DCB183-KR 2 BATTERY 18V - 2.0AH - 36WH DCD791D2 KR 866 DCB184-KR 2 BATTERY 18V - 5.0AH - 90WH DCD791P2 KR 871 DCB115-B1 1 CHARGER DCD796M2 B1 871 DCB115-KR 1 CHARGER 18V DCD791 KR 25

Dewalt Spare Part E-Book | Page 28
