Dewalt Spare Part E-Book | Page 26

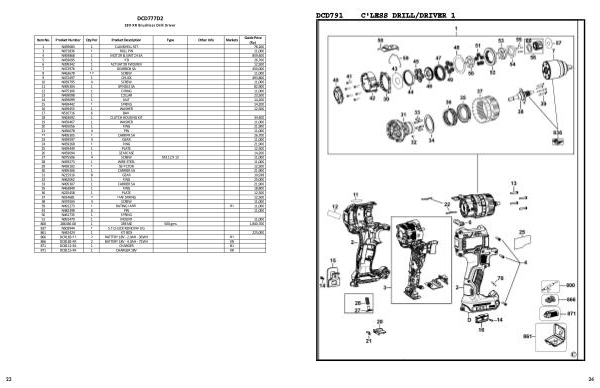

DCD777D2
18V XR Brushless Drill Driver
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N459083 1 CLAMSHELL SET 78,200
3 N071836 1 ROLL PIN 11,000
4 N493868 1 MOTOR & SWITCH SA 859,400
5 N459095 1 LED 26,700
6 N399342 1 ACTUATOR FWD/REV 12,500
7 N472976 1 GEARBOX SA 450,000
8 N463678 12 SCREW 11,000
9 N472497 1 CHUCK 493,800
10 N039795 4 SCREW 11,000
11 N495304 1 SPINDLE SA 82,900
12 N475306 1 O RING 11,000
13 N459098 1 COLLAR 23,500
14 N459099 1 NUT 14,200
15 N459442 1 SPRING 14,200
16 N459455 1 WASHER 12,500
17 N510716 6 BALL
18 N463692 1 CLUTCH HOUSING KIT 34,400
19 N459467 1 WASHER 11,000
20 N455056 1 RING 21,900
21 N456078 4 PIN 11,000
22 N495305 1 CARRIER SA 26,700
23 N459597 4 GEAR 11,000
24 N459268 1 RING 21,900
25 N459449 1 PLATE 12,500
26 N459094 1 GEARCASE 14,200
27 N075506 4 SCREW M3.12 X 13 11,000
28 N459273 1 WIRE STEEL 11,000
29 N459102 1 SELECTOR 12,500
30 N495306 1 CARRIER SA 21,900
31 N215916 8 GEAR 10,938
32 N462062 1 RING 25,000
33 N495307 1 CARRIER SA 21,900
35 N463849 1 RING 18,800
36 N225458 1 PLATE 12,500
37 N014681 2 LEAF SPRING 12,500
38 N474504 4 SCREW 11,000
39 N491273 1 RATING LABEL B1 11,000
43 N482398 6 PIN 11,000
50 N461735 1 SPRING
51 N091479 1 MOUNT 11,000
800 286436-00 1 GREASE 500 gms 1,840,700
837 N503944 1 S.T.CHUCK REMOVAL JIG
861 N442424 1 KIT BOX 225,000
866 DCB183-B1 2 BATTERY 18V - 2.0AH - 36WH B1
866 DCB182-KR 2 BATTERY 18V - 4.0AH - 72WH KR
871 DCB112-B1 1 CHARGER B1
871 DCB115-KR 1 CHARGER 18V KR
23
