Dewalt Spare Part E-Book | Page 24

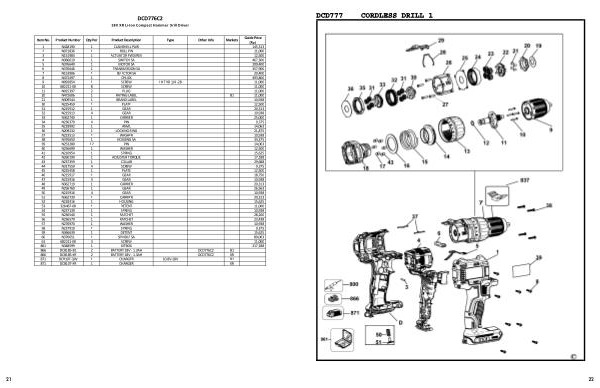

DCD776C2
18V XR Li-Ion Compact Hammer Drill Driver
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 N428190 1 CLAMSHELL PAIR 145,313
2 N071836 1 ROLL PIN 11,000
3 N151983 1 ACTUATOR FWD/REV 12,500
4 N366619 1 SWITCH SA 467,300
5 N376649 1 MOTOR SA 209,400
6 N376646 1 TRANSMISSION SA 357,900
7 N153906 1 SELECTOR SA 20,400
8 N472497 1 CHUCK 493,800
9 N092854 1 SCREW LH THD 1/4 -28 11,000
10 682211-00 8 SCREW 11,000
11 N015397 2 PLUG 11,000
20 N472606 1 RATING LABEL B1 11,000
21 N309544 1 BRAND LABEL 10,938
30 N225459 1 PLATE 12,500
31 N215912 1 GEAR 20,313
32 N215913 4 GEAR 10,938
33 N362740 1 CARRIER 25,000
34 N236379 4 PIN 9,375
35 N218992 1 ANVIL 14,063
36 N209232 1 LOCKING RING 21,875
37 N223513 1 WASHER 10,938
38 N376650 1 HOUSING SA 34,375
39 N253280 12 PIN 14,063
40 N256699 1 WASHER 12,500
41 N210954 1 SPRING 15,625
42 N260199 1 ADJUSTER TORQUE 17,188
43 N237359 1 COLLAR 29,688
44 N317559 4 SCREW 9,375
45 N225458 1 PLATE 12,500
46 N215917 1 GEAR 18,750
47 N215916 3 GEAR 10,938
48 N362719 1 CARRIER 20,313
49 N256760 1 GEAR 26,563
50 N215916 4 GEAR 10,938
51 N362739 1 CARRIER 20,313
52 N218316 1 HOUSING 15,625
53 326467-00 1 DETENT 11,000
54 N237139 1 SPRING 10,938
55 N236540 1 RATCHET 28,200
56 N236579 1 RATCHET 23,438
57 N276970 1 WASHER 10,938
58 N237919 1 SPRING 9,375
59 N366639 1 DETENT 15,625
60 N376651 1 SPINDLE SA 89,063
61 682211-00 3 SCREW 11,000
861 N348599 1 KITBOX 217,188
866 DCB185-B1 2 BATTERY 18V - 1.3AH DCD776C2 B1
866 DCB185-KR 2 BATTERY 18V - 1.3AH DCD776C2 KR
871 DCB107-QW 1 CHARGER 10.8V-18V B1
871 DCB107-KR 1 CHARGER KR
21
