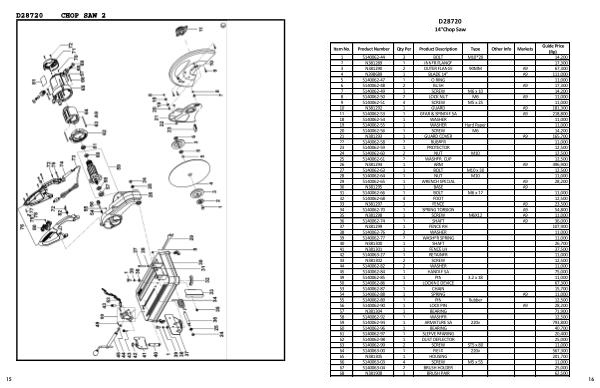

D28720
14"Chop Saw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5140062-44 3 BOLT M10*20 14,200
2 N381289 1 INNER FLANGE 17,300
3 N381290 2 OUTER FLANGE 90MM A9 67,300
4 N398689 1 BLADE 14" A9 111,000
5 5140062-47 1 O RING 11,000
6 5140062-48 2 BUSH A9 17,300
7 5140062-49 1 SCREW M6 x 10 14,200
8 5140062-50 2 LOCK NUT M6 A9 11,000
9 5140062-51 4 SCREW M5 x 25 11,000
10 N381292 1 GUARD A9 181,300
11 5140062-53 1 GEAR & SPINDLE SA A9 218,800
18 5140062-54 1 WASHER 11,000
19 5140062-55 1 WASHER Hard Paper 11,000
20 5140062-56 1 SCREW M6 14,200
21 N381293 1 GUARD COVER A9 165,700
22 5140062-58 2 RUBBER 11,000
23 5140062-59 1 PROTECTOR 12,500
24 5140062-60 2 NUT M10 12,500
25 5140062-61 2 WASHER. CUP 12,500
26 N381294 1 ARM A9 496,900
27 5140062-63 1 BOLT M10 x 30 12,500
28 5140062-64 1 NUT M10 11,000
29 5140062-65 1 WRENCH SPECIAL A9 28,200
30 N381295 1 BASE A9
31 5140062-66 1 BOLT M6 x 12 11,000
32 5140062-68 4 FOOT 12,500
33 N381297 1 FENCE A9 23,500
34 5140062-70 1 SPRING TORSION A9 54,800
35 N381298 1 SCREW M6X12 A9 11,000
36 5140062-74 1 SHAFT A9 36,000
37 N381299 1 FENCE RH 107,900
38 5140062-76 2 WASHER 11,000
39 5140062-77 2 WASHER SPRING 11,000
40 N381300 1 SHAFT 26,700
41 N381301 1 FENCE LH 37,500
42 5140063-27 1 RETAINER 11,000
43 N381302 2 SCREW 12,500
44 5140062-82 2 WASHER 11,000
45 5140062-84 1 HANDLE SA 75,000
49 5140062-85 1 PIN 3.2 x 18 11,000
50 5140062-86 1 LOCKING DEVICE 67,300
53 5140062-87 1 CHAIN 15,700
54 5140062-88 1 SPRING A9 11,000
55 5140062-89 1 PIN Rubber 12,500
56 5140062-90 1 LOCK PIN A9 28,200
57 N381304 1 BEARING 71,900
58 5140062-92 1 WASHER 12,500
59 5140062-94 1 ARMATURE SA 220v 793,800
60 5140062-96 1 BEARING 40,700
61 5140062-97 1 SLEEVE BEARING 20,400
62 5140062-98 1 DUST DEFLECTOR 25,000
63 5140062-99 2 SCREW ST5 x 80 11,000
64 5140063-00 1 FIELD 220v 567,300
65 N381305 1 HOUSING 201,700
66 5140063-03 4 SCREW M5 x 55 11,000
67 5140063-04 2 BRUSH HOLDER 25,000
68 N381908 1 BRUSH PAIR 62,500
