Dewalt Spare Part E-Book | Page 17

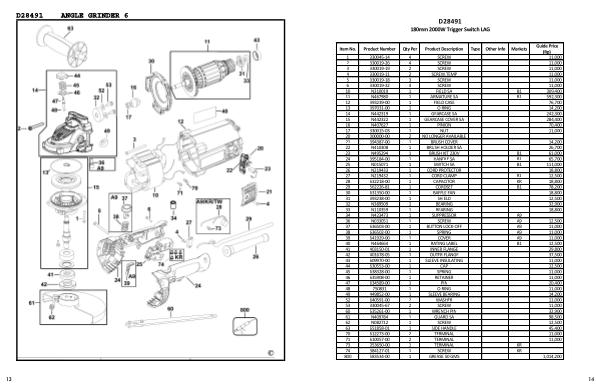

D28491
180mm 2000W Trigger Switch LAG
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 330045-14 4 SCREW 11,000
2 330019-26 4 SCREW 11,000
3 330019-19 2 SCREW 11,000
4 330019-11 2 SCREW.TEMP 11,000
5 330019-18 3 SCREW 11,000
6 330019-32 4 SCREW 11,000
10 N310019 1 FIELD SA B1 309,400
11 N467980 1 ARMATURE SA B1 592,300
12 393239-00 1 FIELD CASE 76,700
13 397031-00 1 O RING 14,200
14 N442319 1 GEARCASE SA 242,300
15 N442322 1 GEARCASE COVER SA 284,400
16 N407627 1 PINION 70,400
17 330015-03 1 NUT 11,000
20 000000-00 2 NO LONGER AVAILABLE
21 394387-00 1 BRUSH COVER 14,200
22 N410308 1 BRUSH HOLDER SA 26,700
23 N495294 1 BRUSH KIT 230V B1 61,000
24 395184-00 1 HANDLE SA B1 65,700
25 N015071 1 SWITCH SA B1 111,000
26 N219433 1 CORD PROTECTOR 18,800
27 N219432 1 CORD CLAMP B1 12,500
28 632218-00 1 CAPACITOR KR 18,800
29 562226-81 1 CORDSET B1 78,200
30 631350-00 1 BAFFLE FAN 18,800
31 393238-00 1 SHIELD 12,500
32 N389509 1 BEARING 32,900
33 N110359 1 BEARING 18,800
34 N423473 1 SUPPRESSOR A9
36 N033051 1 SCREW A9 12,500
37 636503-00 1 BUTTON LOCK-OFF A9 11,000
38 636502-00 1 SPRING A9 11,000
39 641929-00 1 COVER A9 11,000
40 N464664 1 RATING LABEL B1 12,500
41 403150-01 1 INNER FLANGE 29,800
42 401678-05 1 OUTER FLANGE 37,500
43 609970-00 1 SLEEVE INSULATING 11,000
44 630553-00 1 CAP 12,500
45 638328-00 1 SPRING 11,000
46 635908-00 1 RETAINER 11,000
47 634589-00 1 PIN 20,400
48 750831 1 O RING 11,000
49 449852-00 1 SLEEVE BEARING 14,200
52 640591-00 2 WASHER 11,000
53 330045-67 2 SCREW 11,000
60 635261-00 1 WRENCH PIN 32,900
61 N409784 1 GUARD SA 98,500
62 N082712 1 SCREW 12,500
63 651858-01 1 SIDE HANDLE 45,400
70 612273-00 2 TERMINAL 11,000
71 610057-00 2 TERMINAL 11,000
73 053650-00 1 TERMINAL KR
74 384127-01 1 SCREW KR
800 583534-00 1 GREASE 50 GMS 1,014,200
14
