Dewalt Spare Part E-Book | Page 15

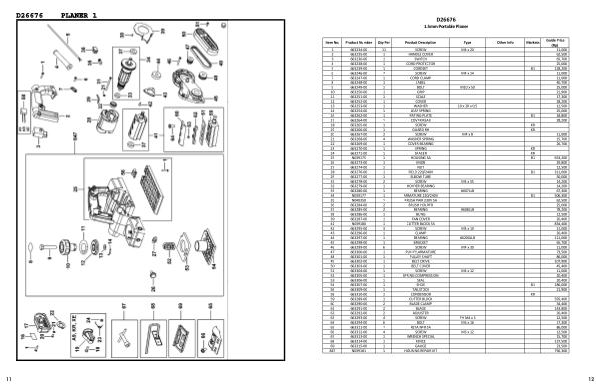

D26676
1.5mm Portable Planer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 663234-00 11 SCREW M4 x 20 11,000
2 663235-00 1 HANDLE COVER 62,500
3 663236-00 1 SWITCH 65,700
4 663238-00 1 CORD PROTECTOR 25,000
5 663239-00 1 CORDSET B1 128,200
6 663246-00 2 SCREW M4 x 14 11,000
7 663247-00 1 CORD CLAMP 11,000
8 663248-00 1 LABEL 40,700
9 663249-00 1 BOLT M10 x 50 25,000
10 663250-00 1 GRIP 21,900
11 663251-00 1 SCALE 17,300
12 663252-00 1 COVER 28,200
13 663253-00 1 WASHER 10 x 20 x 0.5 12,500
14 663254-00 1 LEAF SPRING 25,000
16 663262-00 1 RATING PLATE B1 18,800
17 663264-00 1 COVER REAR 28,200
18 663265-00 1 SCREW KR
19 663266-00 1 GUARD RH KR
20 663267-00 2 SCREW M4 x 8 11,000
21 663268-00 4 WASHER SPRING 15,700
22 663269-00 1 COVER BEARING 26,700
23 663270-00 1 SPRING KR
24 663271-00 1 SPACER KR
25 N039175 1 HOUSING SA B1 653,200
26 663273-00 1 KNOB 29,800
27 663274-00 1 NUT 12,500
28 663276-00 1 FIELD 220/240V B1 311,000
29 663277-00 1 ELBOW TUBE 50,000
31 663278-00 2 SCREW M4 x 55 14,200
32 663279-00 1 HOLDER BEARING 14,200
33 663280-00 1 BEARING #607LLB 67,300
34 N039177 1 ARMATURE 220/240V B1 506,300
35 N040350 1 BRUSH PAIR 230V SA 62,500
36 663284-00 2 BRUSH HOLDER 25,000
37 663285-00 2 BEARING #608LLB 78,200
38 663286-00 1 BUNG 12,500
39 663287-00 1 FAN COVER 20,400
41 N039180 1 CUTTER BLOCK SA 834,400
42 663295-00 3 SCREW M4 x 10 11,000
43 663296-00 1 CLAMP 20,400
44 663297-00 1 BEARING #6200LLB 111,000
45 663298-00 1 BRACKET 65,700
46 663299-00 6 SCREW M4 x 30 11,000
47 663300-00 1 PULLEY,ARMATURE 73,500
48 663301-00 1 PULLEY SHAFT 86,000
49 663302-00 1 BELT DRIVE 107,900
50 663303-00 1 BELT COVER 45,400
51 663304-00 1 SCREW M4 x 12 11,000
52 663305-00 1 SPRING COMPRESSION 20,400
53 663306-00 1 SEAL 20,400
54 663307-00 1 SHOE B1 186,000
56 663309-00 1 TAILSTOCK 21,900
58 663310-00 1 CONDENSOR KR
59 663289-00 1 CUTTER BLOCK 595,400
60 663290-00 2 BLADE CLAMP 34,400
61 663291-00 2 BLADE 143,800
62 663292-00 2 ADJUSTER 20,400
63 663293-00 4 SCREW PH M4 x 6 12,500
64 663294-00 6 BOLT M6 x 16 17,300
65 663311-00 1 RETAINER SA 86,000
66 663312-00 4 SCREW M6 x 12 12,500
67 663313-00 1 WRENCH SPECIAL 15,700
68 663314-00 1 FENCE 137,500
69 663315-00 1 GAUGE 23,500
847 N039181 1 HOUSING REPAIR KIT 756,300
12
