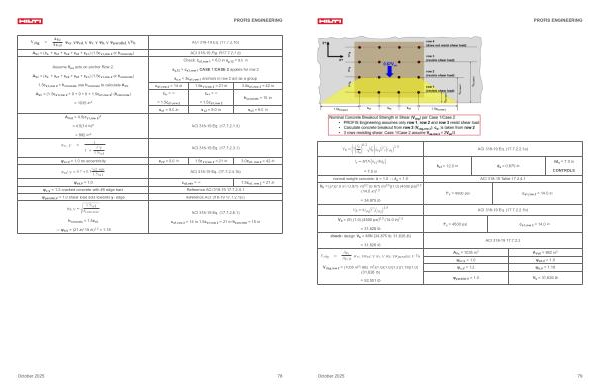

Design guide for considering concrete breakout in shear using ACI 318 anchoring-to-concrete provisions October 2025 | Page 79

PROFIS ENGINEERING
V b = 7 l e d a
0.2 d a λ a f ′ c c a1
1.5 ACI 318-19 Eq.( 17.7.2.2.1a)
l e = MIN h e f | 8d a
= 7.0 in h ef = 12.0 in d a = 0.875 in
normal weight concrete: λ = 1.0 → λ a = 1.0 ACI 318-19 Table 17.2.4.1
V b = [( 7)( 7.0 in / 0.875 in) 0. 2( 0.875 in) 0. 5 ]( 1.0)( 4500 psi) 0. 5( 14.0 in) 1. 5
= 34,875 lb V b = 9λ a f ′ c c a1
1.5 f’ c = 4500 psi
ACI 318-19 Eq.( 17.7.2.2.1b)
c a1, row 2 = 14.0 in
8d a = 7.0 in CONTROLS
V cbg =
V b =( 9)( 1.0)( 4500 psi) 0. 5( 14.0 in) 1. 5 = 31,626 lb check: design V b = MIN { 34,875 lb; 31,626 lb }
A Vc A Vc0
= 31,626 lb
ψ ec, V ψ ed, V ψ c, V ψ h, V ψ parallel, V V b
V cbg, row 2 =( 1035 in 2 / 882 in 2)( 1.0)( 1.0)( 1.2)( 1.18)( 1.0)( 31,626 lb)
= 52,551 lb
f’ c = 4500 psi
c a1, row 2 = 14.0 in
ACI 318-19 17.7.2.2
A Vc = 1035 in 2
A Vc0 = 882 in 2
ψ ec, V = 1.0
ψ ed, V = 1.0
ψ c, V = 1.2
ψ h, V = 1.18
ψ parallel, V = 1.0
V b = 31,626 lb
October 2025 79
