PROFIS ENGINEERING

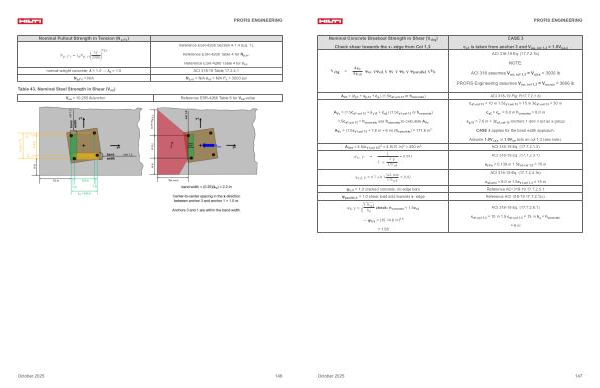

Nominal Concrete Breakout Strength in Shear( V cbg) Check shear towards the x- edge from Col 1,3.
CASE 3 c a1 is taken from anchor 3 and V ua, col 1, 3 = 1.0V ua, x ACI 318-19 Eq.( 17.7.2.1b)
V cbg = |
A Vc A Vc0 |
ψ ec, V ψ ed, V ψ c, V ψ h, V ψ parallel, V V b |
NOTE:
ACI 318 assumes V ua, col 1, 3 = V ua, x = 3000 lb
|
|
|
|
PROFIS Engineering assumes V ua, col 1, 3 = V ua, res = 3606 lb |
A Vc =( c y + + s y, 13 + c y-)( 1.5c a1, col 13 or h concrete) ACI 318-19 Fig. R17.7.2.1 b) c a1, col 13 = 10 in 1.5c a1, col 13 = 15 in 3c a1, col 13 = 30 in
A Vc =( 1.5c a1 col 13 + s y13 + c a2)( 1.5c a1, col 13 or h concrete) 1.5c a1, col 13 > h concrete use h concrete to calculate A Vc A Vc =( 1.5c a1, col 13 + 7.6 in + 6 in)( h concrete) = 171.6 in 2 c a2 = c y- = 6.0 in h concrete = 6.0 in s y, 13 = 7.6 in < 3c a1, col 13 anchors 1 and 3 act as a group CASE 3 applies for the band width approach. Assume 1.0V ua, x or 1.0V ua acts on col 1,3( see note).
A Vc0 = 4.5( c a1, col 13) 2 = 4.5( 10 in) 2 = 450 in 2 ACI 318-19 Eq.( 17.7.2.1.3)
ψ ec, V =
1 1 + e ′ V
1.5c a1
= 0.991 ACI 318-19 Eq.( 17.7.2.3.1) e cV. y = 0.139 in 1.5c a1, col 1, 3 = 15 in ψ ed, V = 0.7 + 0.3 c a2, min 1.5c a1
= 0.82
ACI 318-19 Eq.( 17.7.2.4.1b) c a2, min = 6.0 in 1.5c a1, col 1, 3 = 15 in ψ c, V = 1.0 cracked concrete, no edge bars Reference ACI 318-19 17.7.2.5.1 ψ parallel, V = 1.0 shear load acts towards x- edge Reference ACI 318-19 17.7.2.1( c).
ψ h, V =
1. 5c a1 h a check: h concrete < 1.5c a1
→ ψ h, V =( 15 in / 6 in) 0. 5 = 1.58
ACI 318-19 Eq.( 17.7.2.6.1) c a1, col 1, 3 = 10 in 1.5 c a1, col 1, 3 = 15 in h a = h concrete = 6 in
October 2025 147
