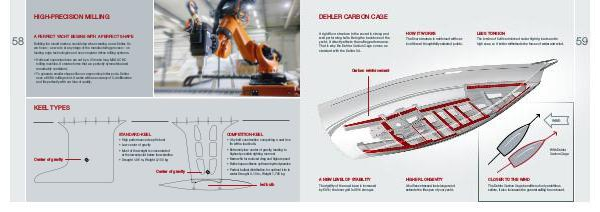

HIGH-PRECISION MILLING
58
DEHLER CARBON CAGE
A rigid floor structure is the secret in strong and
well performing hulls. Being the backbone of the
yacht, it directly affects the sailing performance.
That is why the Dehler Carbon Cage comes as
standard with the Dehler 34.
A PERFECT YACHT BEGINS WITH A PERFECT SHAPE
Building the mould marks a crucial step when creating a new Dehler. So
we focus – as we do at any stage of the manufacturing process – on
leading edge technologies and use computer driven milling systems.
• Hulls and superstructures are cut by a 20 metre long MAKA CNC
milling machine. It creates forms that are perfectly symmetrical and
remarkably consistent.
HOW IT WORKS
LESS TORSION
The floor structure is reinforced with carbon fibre at thoughtfully selected points.
The torsion of hull is minimised under high rig loads and in
high seas, so it better withstands the forces of water and wind.
Carbon reinforcement
• To generate smaller shapes like our ergonomic plotter pods, Dehler
uses a KUKA milling robot. It works with an accuracy of 0,4 millimetres
and fits perfectly with our idea of quality.
KEEL TYPES
WIND
Center of gravity
STANDARD-KEEL
COMPETITION-KEEL
• High performance deep fin keel
• Low center of gravity
• A hybrid construction comprising a cast iron
fin with a lead bulb.
• Most of the weight is concentrated
at the lowest point below the waterline
• Extremely low center of gravity, leading to
highest possible righting moment
• Draught 1.95 m, Weight 2,100 kg
• Narrow fin f or reduced drag and higher speed
With Dehler
Carbon Cage
• Bulb shape achieves optimum hydrodynamics
Center of gravity
• Perfect ballast distribution for optimal trim in
water Draught 2.10 m, Weight 1,700 kg
led bulb
A NEW LEVEL OF STABILITY
HIGHER LONGEVITY
CLOSER TO THE WIND
The rigidity of the mast base is increased
by 50 %; the inner grid is 25 % stronger.
A hull less stressed lasts longer and
extends the life span of your yacht.
The Dehler Carbon Cage benefits not only ambitious
sailors, it also increases the general sailing fun onboard.
