DBV Rainscreen Facade Product Technical Guide

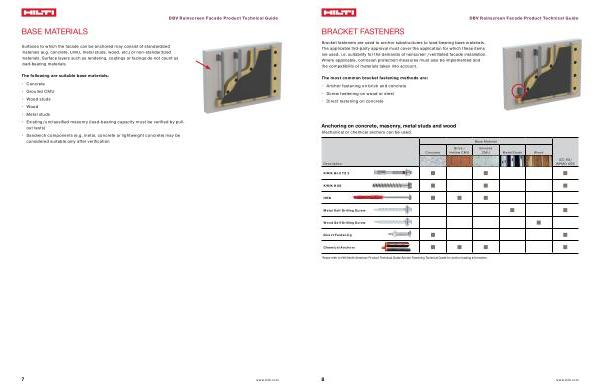

BRACKET FASTENERS
Bracket fasteners are used to anchor substructures to load-bearing base materials . The applicable 3rd-party approval must cover the application for which these items are used , i . e . suitability for the demands of rainscreen / ventilated facade installation . Where applicable , corrosion protection measures must also be implemented and the compatibility of materials taken into account .
The most common bracket fastening methods are :
• Anchor fastening on brick and concrete
• Screw fastening on wood or steel
• Direct fastening on concrete
Anchoring on concrete , masonry , metal studs and wood Mechanical or chemical anchors can be used .
Base Material
Concrete
Brick / Hollow CMU
Grouted |
|
|
CMU |
Metal Studs |
Wood |
Description
ICC-ES / IAPMO UES
KWIK Bolt TZ 2 █ █ █
KWIK HUS █ █ █
HRD █ █ █
Metal Self Drilling Screw █ █
Wood Self Drilling Screw
█
Direct Fastening █ █
Chemical Anchors █ █ █ █
Please refer to Hilti North American Product Technical Guide Anchor Fastening Technical Guide for anchor loading information .
