DBV Rainscreen Facade Product Technical Guide
OVERVIEW
A drained and back ventilated rainscreen facade is an outside wall cladding application in which the ventilation zone behind the cladding material is in contact with the atmosphere .
• A drained and back rainscreen ventilated facade is a multi-layered system , which can provide longer term functionality ; combining functional , economical and aesthetic properties ; greater insulation and protection of the primary structure from weather exposure .

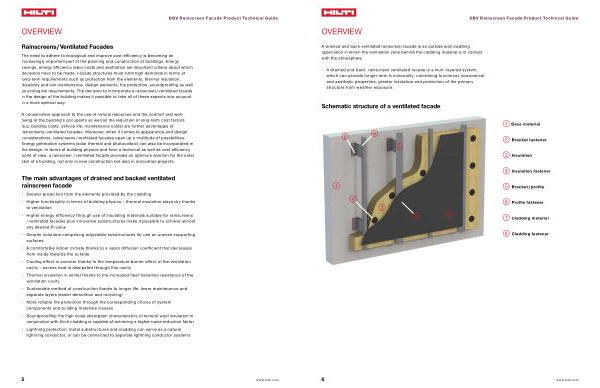

Schematic structure of a ventilated facade
� |
� |
� |
� Base material
� Bracket fastener
|
|
|
|
� Insulation |
|
|
|
� Insulation fastener |
�
� Bracket / profile
� |
� |
� |
� |
� Profile fastener
� Cladding material
|
|
|
|
|
� Cladding fastener |
