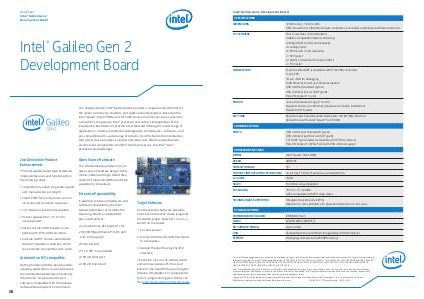

Intel® Galileo Gen 2 Development Board
SPECIFICATIONS
DIMENSIONS

123.8 mm (L) × 72.0 mm (W)
USB connectors, RJ45 (Ethernet) jack, and power jack slightly extend beyond these dimensions

ATTACHMENT

Four screw holes 4 mm (diameter)
Arduino-compatible headers containing:
• 20 digital I/O (12 fully native speed)
• 6 analog inputs
• 6 PWMs with 12-bit resolution
• 1 SPI master
• 2 UARTs (1 shared with console UART)
• 1 I2C master

CONNECTORS

6-pin console UART (compatible with FTDI USB converters)
6-pin ICSP
10-pin JTAG for debugging
RJ45 Ethernet, Power over Ethernet capable
USB 2.0 Host (standard Type A)
USB 2.0 Client (micro-USB Type B)
Mini-PCI Express* 1x slot

POWER

Jack with increased range (7 to 15 V)
Supports Power-over-Ethernet (requires PoE module installation)
Header for RTC power

BUTTONS

Reset for sketch and attached shield resets 10/100 Mbps Ethernet
Reboot to reset the Intel® Quark™ SoC X1000

COMMUNICATIONS
PORTS

USB 2.0 Host port (standard Type A)
USB 2.0 Client port (micro-USB Type B)
TTL UART 6-pin header (compatible with FTDI converters)
Mini-PCI Express* (mPCIe*) slot with USB 2.0 Host support

PROCESSOR FEATURES
MODEL

Intel® Quark™ SoC X1000

SPEED

400 MHz

CORES/THREADS

1/1

INSTRUCTION SET ARCHITECTURE (ISA)

32-bit Intel® Pentium® processor-compatible ISA

L1 CACHE

16 KB

SRAM

512 KB on-die, embedded

PACKAGING

15 mm × 15 mm BGA
ACPI-compatible with CPU sleep states

TECHNOLOGIES SUPPORTED

Integrated real-time clock (RTC)
Optional 3 V coin cell battery for operation between turn-on cycles

STORAGE OPTIONS
FIRMWARE/BOOTLOADER

8 MB NOR Flash

DRAM

256 MB DDR3; 800 MT/s

SD CARD (OPTIONAL)

Up to 32 GB

USB

Compatible with any USB 2.0 storage device (USB drive/stick)

EEPROM

8 KB (programmed via the EEPROM library)
