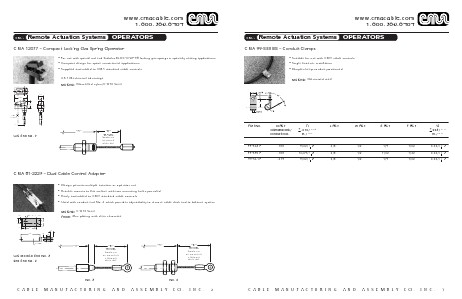

CMA 12077 – Compact Locking Gas Spring Operator
• For use with special rod end Stabilus BLOC-O-LIFT® locking gas springs in specialty seating applications
• Compact design for space constrained applications
• Supplied assembled to CMA standard cable controls
3.5:1 Mechanical advantage
Material: Glass filled nylon/C1070 Steel
.710
1.422
.84
GAS C
L
SPRING
.695
“B“
TRAVEL
“A“
Use End No. 9
(BASED ON
ACTUATOR
SELECTED)
CMA 81-222P – Dual Cable Control Adapter
• Design permits multiple actuator or operator use
• Bracket mounts to flat surface with two mounting holes provided
• Easily assembled to CMA standard cable controls
• Used with conduit end No. 6 which provides adjustability to remove cable slack and to balance system
➤
➤
➤
➤➤
1"
Material: C1010 Steel
Finish: Zinc plating with clear chromate
3/16" Dia. Typ. 2 Pls.
1/2"
➤
➤
11/2"
.75 ➤ ➤➤
➤
31/2"
.312
3/8"
➤
➤
➤
3/4"
➤ ➤
➤
➤➤
➤
➤
➤
➤
2.0
3/4"
.080 MAX.
“A“
“B“
TRAVEL
(BASED ON
ACTUATOR OR
OPERATOR
SELECTED)
(BASED ON
ACTUATOR OR
OPERATOR
SELECTED)
Use Molded End No. 5
and End No. 6
No. 5
C A B L E
“B“
TRAVEL
“A“
M A N U F A C T U R I N G
No. 6
A N D
A S S E M B L Y
C O .
I N C .
