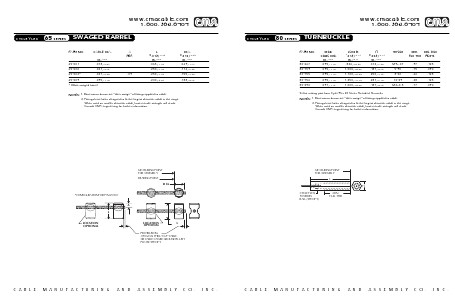

Component Catalog July 2014 | Page 29

www.cmacable.com 1.800.586.8404 CYCLE-FLEXTM 80 SERIES TURNBUCKLE PART NO. Max. Cable Dia. in./ mm Length -.015/ 0.13 in./ mm H ±.005/ 0.13 in./ mm Thread Min. Dia. Ball Full Thd Req’d. 80-667 .045/ 1.14 .826/ 20.98 .312/ 7.94 M4x.07 .47 .125 80-754 .045/ 1.14 1.000/ 25.40 .187/ 4.75 5-40 .75 .093 80-755 .045/ 1.14 1.120/ 28.45 .250/ 6.35 8-32 .66 .125 80-756 .045/ 1.14 1.250/ 31.75 .281/ 7.14 10-24 .38 .125 80-290 .047/ 1.19 1.000/ 25.40 .187/ 4.75 M3x0.5 .77 .093 Select mating part from Cycle-Flex 20 Series Threaded Terminals. NOTES: 1. Dimensions shown are “after swage” of fittings applied to cable. 2. Fittings have been designed to fit the largest diameter cable in the range. When used on smaller diameter cable, lower tensile strength will result. Consult CMA engineering for further information. MEASURING POINT FOR ASSEMBLY L H CYCLE FLEX 40 SERIES BALL (SPECIFY) C A B L E MIN. FULL THD M A N U F A C T U R I N G A N D A S S E M B L Y C O . I N C .
