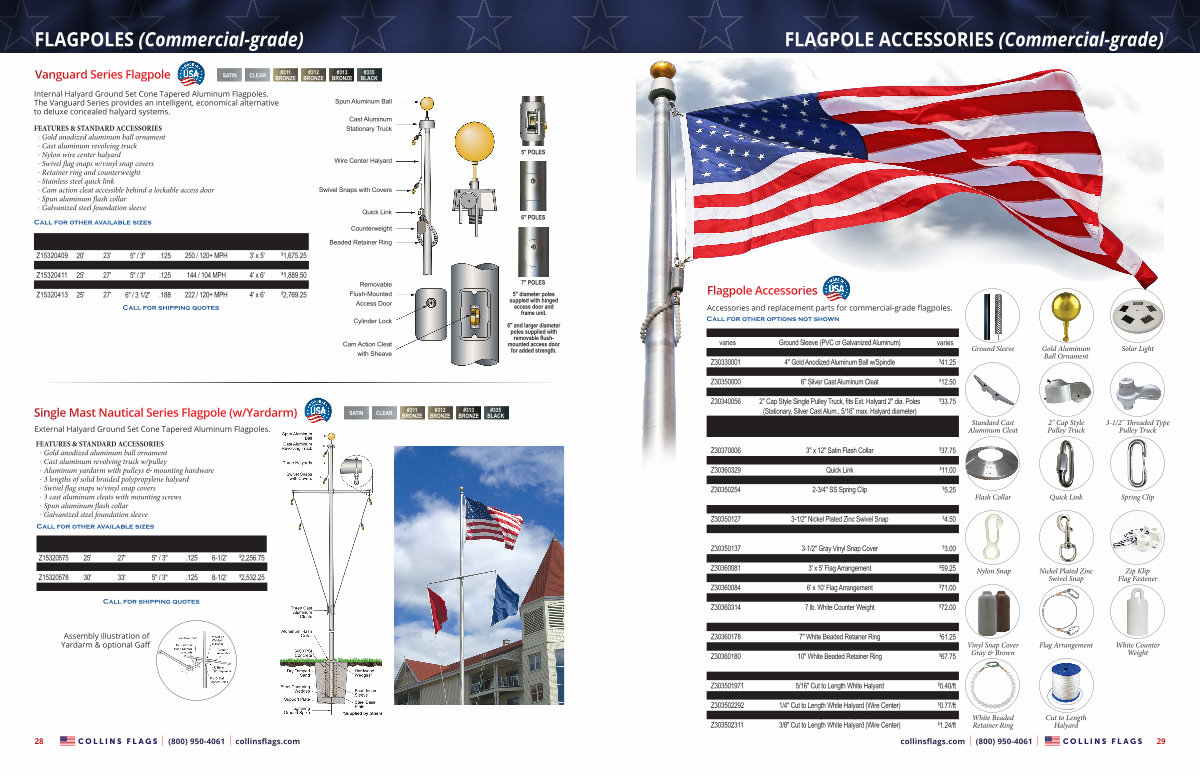

FLAGPOLES( Commercial-grade)
SATIN CLEAR
# 311 BRONZE
# 312 BRONZE
# 313 BRONZE
# 335 BLACK
Internal Halyard Ground Set Cone Tapered Aluminum Flagpoles. The Vanguard Series provides an intelligent, economical alternative to deluxe concealed halyard systems.
FEATURES & STANDARD ACCESSORIES. Gold anodized aluminum ball ornament. Cast aluminum revolving truck. Nylon wire center halyard. Swivel flag snaps w / vinyl snap covers. Retainer ring and counterweight. Stainless steel quick link. Cam action cleat accessible behind a lockable access door. Spun aluminum flash collar. Galvanized steel foundation sleeve
Call for other available sizes EXPOSED
ITEM NO. HEIGHT
Z15320409 20 ' Z15320410 20 ' Z15320411 25 ' Z15320412 25 ' Z15320413 25 '
OVERALL LENGTH
23 ' 23 ' 27 ' 27 ' 27 '
DIAMETER BUTT / TOP
5 " / 3 " 5 " / 3 " 5 " / 3 " 5 " / 3 " 6 " / 3 1 / 2 "
WALL. 125. 188. 125. 156. 188
UNFLAGGED / FLAGGED MAX. WIND SPEED
250 / 120 + MPH 315 / 120 + MPH 144 / 104 MPH 192 / 117 MPH 222 / 120 + MPH
Call for shipping quotes
SUGGESTED FLAG SIZE
3 ' x 5 ' 3 ' x 5 ' 4 ' x 6 ' 4 ' x 6 ' 4 ' x 6 '
PRICE
$
1,675.25
$
2,042.50
$
1,889.50
$
2,096.00
$
2,769.25
Spun Aluminum Ball
Cast Aluminum Stationary Truck
Wire Center Halyard
Swivel Snaps with Covers
Quick Link
Counterweight Beaded Retainer Ring
Removable
Flush-Mounted Access Door
Cylinder Lock
Cam Action Cleat with Sheave
5 " POLES
6 " POLES
7 " POLES
5 " diameter poles suppled with hinged access door and frame unit.
6 " and larger diameter poles supplied with removable flushmounted access door for added strength.
Single Mast Nautical Series Flagpole( w / Yardarm) |
SATIN |
CLEAR |
|
|
|
# 311 BRONZE
# 312 BRONZE
|
# 313 BRONZE |
# 335 BLACK |
External Halyard Ground Set Cone Tapered Aluminum Flagpoles. |
|
|
|
|
|
FEATURES & STANDARD ACCESSORIES. Gold anodized aluminum ball ornament. Cast aluminum revolving truck w / pulley. Aluminum yardarm with pulleys & mounting hardware. 3 lengths of solid braided polypropylene halyard. Swivel flag snaps w / vinyl snap covers. 3 cast aluminum cleats with mounting screws. Spun aluminum flash collar. Galvanized steel foundation sleeve |
|
|
|
|
|
Call for other available sizes |
|
|
|
|
|
ITEM NO. Z15320575 Z15320576 Z15320578 Z15320583 |
EXPOSED HEIGHT
25 ' 25 ' 30 ' 35 '
|
OVERALL LENGTH
27 ' 27 ' 33 ' 38-1 / 2 '
|
DIAMETER BUTT / TOP
5 " / 3 " 5 " / 3 " 5 " / 3 " 6 " / 3-1 / 2 "
|
WALL. 125. 156. 125. 156 |
YARDARM LENGTH
6-1 / 2 ' 6-1 / 2 ' 8-1 / 2 ' 9-1 / 2 '
|
PRICE
$
2,256.75
$
2,555.00
$
2,532.25
$
3,304.75
|
Call for shipping quotes |
Assembly illustration of Yardarm & optional Gaff |
28 COLLINS FLAGS( 800) 950-4061 collinsflags. com |
