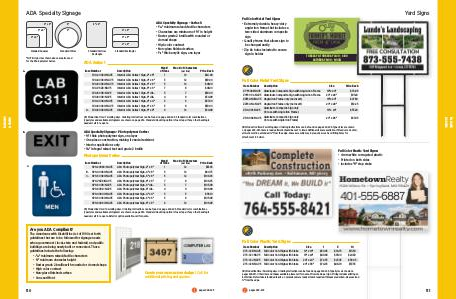

ADA Specialty Signage
8" x 8"
6" x 6"
8"
ADA Specialty Signage - Series 1:
• 1⁄32" minimum raised/tactile characters
• Characters are minimum of ⅝" in height
• Raster grade 2 braille with rounded or
domed shape
• High color contrast
• Non-glare finished surface
• 1⁄16" thick acrylic sign, one layer
8" x 6"
6"
6" x 8"
4" x 4"
4" x 8"
2" x 8"
Standard Squares
Standard Circles
*NOTE: sign sizes shown above are also used
for the Photopolymer Series.
A.
Standard Vertical
Rectangle
Standard Rectangles
ADA Series 1
Max #
of lines
1
Max # of Characters
Item Number
SVA-20080-NAV5
Description
Interior ADA Series 1 Sign, 2" x 8"
SVA-40080-NAV5
Interior ADA Series 1 Sign, 4" x 8"
SVA-60080-NAV5
Interior ADA Series 1 Sign, 6" x 8"
SVA-V6Z8-NAV5
Interior ADA Series 1 Sign, 8" x 6"
7
8
$41.00
SVA-600D-NAV5
Interior ADA Series 1 Sign, 6" dia.
3
7
$39.00
SVA-800D-NAV5
Interior ADA Series 1 Sign, 8" dia.
4
9
$54.99
SVA-40040-NAV5
Interior ADA Series 1 Sign, 4" x 4"
3
5
$37.00
SVA-60060-NAV5
Interior ADA Series 1 Sign, 6" x 6"
5
8
$39.00
SVA-80080-NAV5
Interior ADA Series 1 Sign, 8" x 8"
6
12
$54.99
A.
12
Price Each
$24.90
3
12
$39.00
5
12
$41.00
(per line)
BADGES
& SIGNS
(P) Production time: 7 working days. Ordering instructions can be found on page 242-243. Standard color combinations,
typestyles and available pictograms are shown on page 232. Standard mounting option is foam tape; if any other backing is
needed, call for a quote.
ADA Specialty Signage - Photopolymer Series:
• ⅛" thick photopolymer sign, one layer
• One piece construction, making it vandal resistant
• Interior applications only
• 1⁄32" integral raised text and grade 2 braille
B.
Photopolymer Series
Item Number
SPS-20080-NAV5
C.
Description
ADA Photopolymer Sign, 2" x 8"
Max #
of lines
1
Max # of Characters
(per line)
12
Price Each
$31.65
B.
SPS-40080-NAV5
ADA Photopolymer Sign, 4" x 8"
3
12
$60.75
C.
SPS-60080-NAV5
ADA Photopolymer Sign, 6" x 8"
5
12
$106.95
SPS-V6Z8-NAV5
ADA Photopolymer Sign, 8" x 6"
7
8
$106.95
SPS-600D-NAV5
ADA Photopolymer Sign, 6" dia.
3
7
$105.99
SPS-800D-NAV5
ADA Photopolymer Sign, 8" dia.
4
9
$106.99
SPS-40040-NAV5
ADA Photopolymer Sign, 4" x 4"
3
5
$36.10
SPS-60060-NAV5
ADA Photopolymer Sign, 6" x 6"
5
8
$105.99
SPS-80080-NAV5
ADA Photopolymer Sign, 8" x 8"
6
12
$106.99
(P) Production time: 14 working days. Ordering instructions can be found on page 242-243. Standard color combinations,
typestyles and available pictograms are shown on page 232. Standard mounting option is foam tape; if any other backing is
needed, call for a quote. Exterior option available, call for quote.
Are you ADA Compliant?
The Americans with Disabilities Act of 1990 set forth
guidelines that are to be followed for signage needs
when government (local, state and federal) and public
buildings are being newly built or renovated. Those
guidelines include the following:
• 1⁄32" minimum raised/tactile characters
• 5⁄8" minimum character height
• Raster grade 2 braille with rounded or domed shape
• High color contrast
• Non-glare finished surface
• Sans serif font
110
Create your own custom design | Call for
additional pricing and quotes.
pages 229-243
