Three locking options as standard:
1. Total Locking 2. Latching Only 3. Hold Open
|
3 |
|
|
1
High security multipoint lock
certified to highest level( grade 7) of EN12209, prEN15685, EN14846 which guarantees:
• Resistance to breaking with a force greater than 1000kg.
• Resistance to a head-on force up to 600kg.
|
|
Auto Dead Locking instantly locks when the door is closed, throwing three 27mm security bolts.
2
|
4
5
6
Deadbolts with 27 mm projection. Security anti lift hook bolts gives superior anchoring and resistance against attack.
Reinforced deadbolts. The deadbolts are covered in carbonitrided steel plating on both sides. Advantages: anti-drill and anti-cut resistance.
Backset available. 35,40,45,50,55,60,65 mm 92 mm centres
8
Strike plates
Adjustable and made of stainless steel. Available in Flat and U Shape face plate and electric strike options.
7
Tested to PAS 24, VDS, SKG, IMP and EN 1627
9

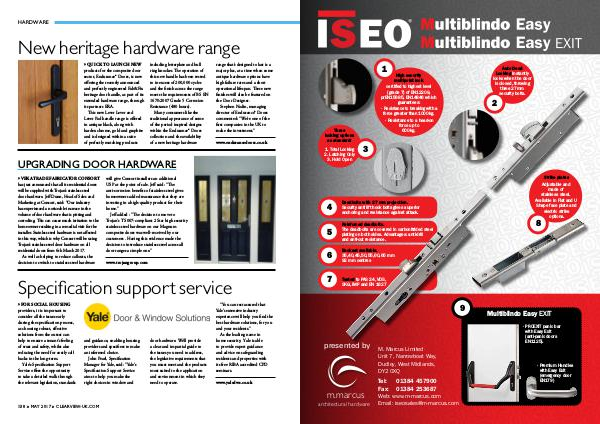

Multiblindo Easy EXIT presented by
m. marcus architectural hardware
M. Marcus Limited Unit 7, Narrowboat Way, Dudley, West Midlands, DY2 0XQ
Tel: 01384 457900 Fax: 01384 253687 Web: www. m-marcus. com Email: iseosales @ m-marcus. com
• PROEXIT panic bar with Easy Exit( anti-panic doors EN1125).
• Premium Handles with Easy Exit( emergency door EN179)
