Note: You may create and / or assume all necessary assumptions
needed for the completion of this assignment.
1.
2.
3.
4.
5.
6.

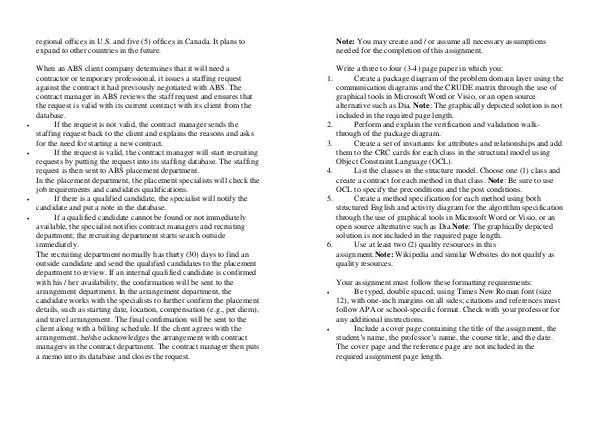

Write a three to four (3-4) page paper in which you:
Create a package diagram of the problem domain layer using the
communication diagrams and the CRUDE matrix through the use of
graphical tools in Microsoft Word or Visio, or an open source
alternative such as Dia. Note: The graphically depicted solution is not
included in the required page length.
Perform and explain the verification and validation walk-
through of the package diagram.
Create a set of invariants for attributes and relationships and add
them to the CRC cards for each class in the structural model using
Object Constraint Language (OCL).
List the classes in the structure model. Choose one (1) class and
create a contract for each method in that class. Note: Be sure to use
OCL to specify the preconditions and the post conditions.
Create a method specification for each method using both
structured English and activity diagram for the algorithm specification
through the use of graphical tools in Microsoft Word or Visio, or an
open source alternative such as Dia.Note: The graphically depicted
solution is not included in the required page length.
Use at least two (2) quality resources in this
assignment.Note: Wikipedia and similar Websites do not qualify as
quality resources.
Your assignment must follow these formatting requirements:
Be typed, double spaced, using Times New Roman font (size
12), with one-inch margins on all sides; citations and references must
follow APA or school-specific format. Check with your professor for
any additional instructions.
Include a cover page containing the title of the assignment, the
student’s name, the professor’s name, the course title, and the date.
The cover page and the reference page are not included in the
required assignment page length.
