Catalogus Steigers 2025 EN -kl

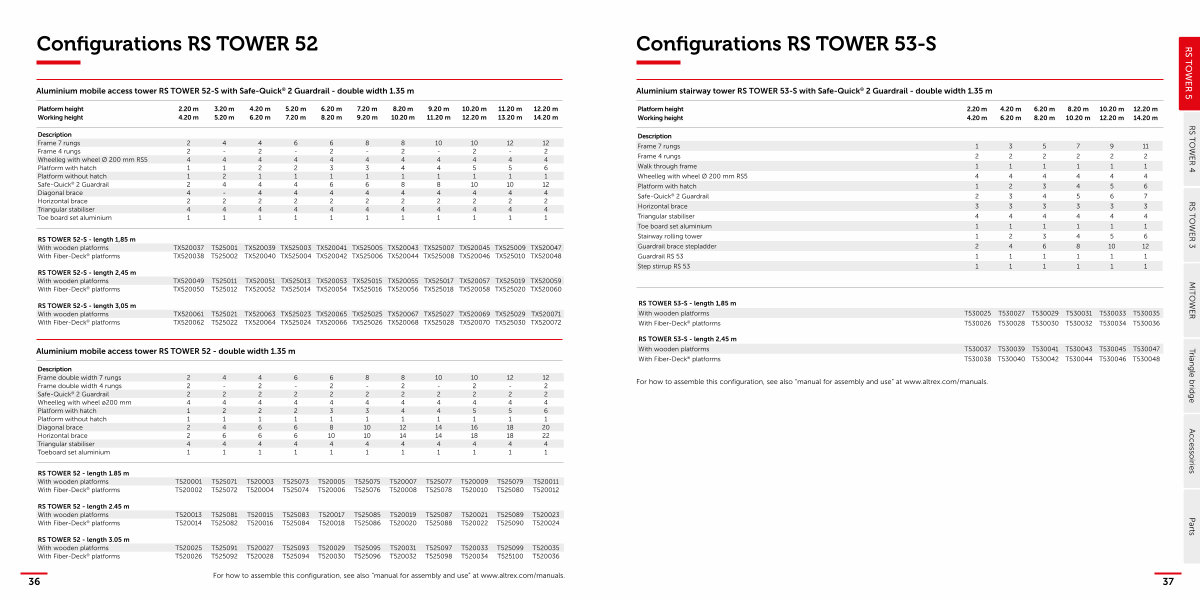

Aluminium mobile access tower RS TOWER 52-S with Safe-Quick ® 2 Guardrail- double width 1.35 m

Platform height	2.20 m	3.20 m	4.20 m	5.20 m	6.20 m	7.20 m	8.20 m	9.20 m	10.20 m	11.20 m	12.20 m
Working height	4.20 m	5.20 m	6.20 m	7.20 m	8.20 m	9.20 m	10.20 m	11.20 m	12.20 m	13.20 m	14.20 m

RS TOWER 52-S- length 1,85 m With wooden platforms	TX520037	T525001	TX520039	TX525003	TX520041	TX525005	TX520043	TX525007	TX520045 TX525009		TX520047
With Fiber-Deck ® platforms	TX520038	T525002	TX520040 TX525004 TX520042 TX525006 TX520044 TX525008 TX520046							TX525010	TX520048

RS TOWER 52-S- length 2,45 m With wooden platforms	TX520049	T525011	TX520051	TX525013	TX520053	TX525015	TX520055	TX525017	TX520057	TX525019	TX520059
With Fiber-Deck ® platforms	TX520050	T525012	TX520052	TX525014	TX520054	TX525016	TX520056	TX525018	TX520058	TX525020 TX520060

RS TOWER 52-S- length 3,05 m With wooden platforms	TX520061	T525021	TX520063	TX525023	TX520065	TX525025	TX520067	TX525027	TX520069	TX525029	TX520071
With Fiber-Deck ® platforms	TX520062	T525022	TX520064	TX525024	TX520066	TX525026	TX520068 TX525028		TX520070	TX525030	TX520072

Aluminium mobile access tower RS TOWER 52- double width 1.35 m

Description Frame double width 7 rungs	2	4	4	6	6	8	8	10	10	12	12
Frame double width 4 rungs	2	-	2	-	2	-	2	-	2	-	2
Safe-Quick ® 2 Guardrail	2	2	2	2	2	2	2	2	2	2	2
Wheelleg with wheel ø200 mm	4	4	4	4	4	4	4	4	4	4	4
Platform with hatch	1	2	2	2	3	3	4	4	5	5	6
Platform without hatch	1	1	1	1	1	1	1	1	1	1	1
Diagonal brace	2	4	6	6	8	10	12	14	16	18	20
Horizontal brace	2	6	6	6	10	10	14	14	18	18	22
Triangular stabiliser	4	4	4	4	4	4	4	4	4	4	4
Toeboard set aluminium	1	1	1	1	1	1	1	1	1	1	1

For how to assemble this configuration, see also“ manual for assembly and use” at www. altrex. com / manuals.

Catalogus Steigers 2025 EN -kl | Page 36
