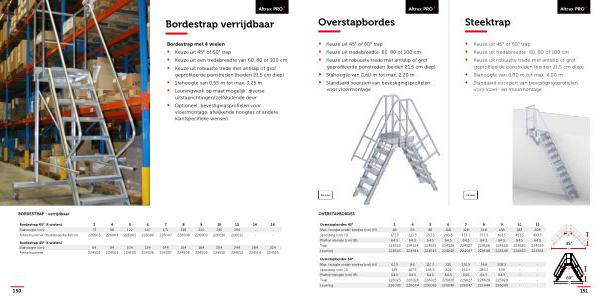

Catalogus 2023-2024 NL | Page 151

Altrex PRO + Altrex PRO +

Overstapbordes Steektrap

• Keuze uit 45 ° of 60 ° trap
• Keuze uit tredebreedte 60 , 80 of 100 cm
• Keuze uit robuuste trede met antislip of grof geprofileerde ponstreden ( beiden 21,5 cm diep )
• Stahoogte van 0,60 m tot max . 2,20 m
• Standaard voorzien van bevestigingsprofielen voor vloermontage
• Keuze uit 45 ° of 60 ° trap
• Keuze uit tredebreedte 60 , 80 of 100 cm
• Keuze uit robuuste trede met antislip of grof geprofileerde ponstreden ( beiden 21,5 cm diep )
• Stahoogte van 0,80 m tot max . 4,00 m
• Standaard voorzien van bevestigingsprofielen voor vloer- en muurmontage
EN 14122 EN 14122
OVERSTAPBORDES
Overstapbordes 45 °
3
4
5
6
7
8
9
10
11
Max . hoogte onder bordes ( cm ) ( H )
48
68
88
108
128
148
168
188
208
Spreiding ( cm ) ( S )
173.5
213.5
253.5
293.5
333.5
373.5
413.5
453.5
493.5
Platformlengte ( cm ) ( B )
64.5
64.5
64.5
64.5
64.5
64.5
64.5
64.5
64.5
Trap
224523
224524
224525
224526
224527
224528
224529
224530
224530
Leuning
224543
224544
224545
224546
224547
224548
224549
224550
224551
Overstapbordes 60 ° Max . hoogte onder bordes ( cm ) ( H )
61.5
86
110.5
135
159.5
184
208.5
-
-
Spreiding ( cm ) ( S )
139
167.5
195.5
224
252.5
280.5
309
-
-
Platformlengte ( cm ) ( B )
64.5
64.5
64.5
64.5
64.5
64.5
64.5
-
-
Trap
226023
226024
226025
226026
226027
226028
226029
-
-
Leuning
226043
226044
226045
226046
226047
226048
226049
-
-
B
45 °
S
B
60 °
S
H
H
151
