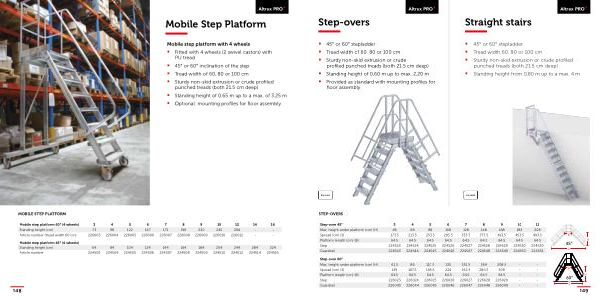

Catalogus 2023-2024 EN | Page 149

Altrex PRO + Altrex PRO +

Step-overs Straight stairs

• 45 ° or 60 ° stepladder
• Tread width of 60 , 80 or 100 cm
• Sturdy non-skid extrusion or crude profiled punched treads ( both 21.5 cm deep )
• Standing height of 0,60 m up to max . 2,20 m
• Provided as standard with mounting profiles for floor assembly
• 45 ° or 60 ° stepladder
• Tread width 60 , 80 or 100 cm
• Sturdy non-skid extrusion or crude profiled punched treads ( both 21.5 cm deep )
• Standing height from 0,80 m up to a max . 4 m
EN 14122 EN 14122
STEP-OVERS
Step-over 45 °
3
4
5
6
7
8
9
10
11
Max . height under platform ( cm ) ( H )
48
68
88
108
128
148
168
188
208
Spread ( cm ) ( S )
173.5
213.5
253.5
293.5
333.5
373.5
413.5
453.5
493.5
Platform length ( cm ) ( B )
64.5
64.5
64.5
64.5
64.5
64.5
64.5
64.5
64.5
Step
224523
224524
224525
224526
224527
224528
224529
224530
224530
Guardrail
224543
224544
224545
224546
224547
224548
224549
224550
224551
Step-over 60 ° Max . height under platform ( cm ) ( H )
61.5
86
110.5
135
159.5
184
208.5
-
-
Spread ( cm ) ( S )
139
167.5
195.5
224
252.5
280.5
309
-
-
Platform length ( cm ) ( B )
64.5
64.5
64.5
64.5
64.5
64.5
64.5
-
-
Step
226023
226024
226025
226026
226027
226028
226029
-
-
Guardrail
226043
226044
226045
226046
226047
226048
226049
-
-
B
45 °
S
B
60 °
S
H
H
149
