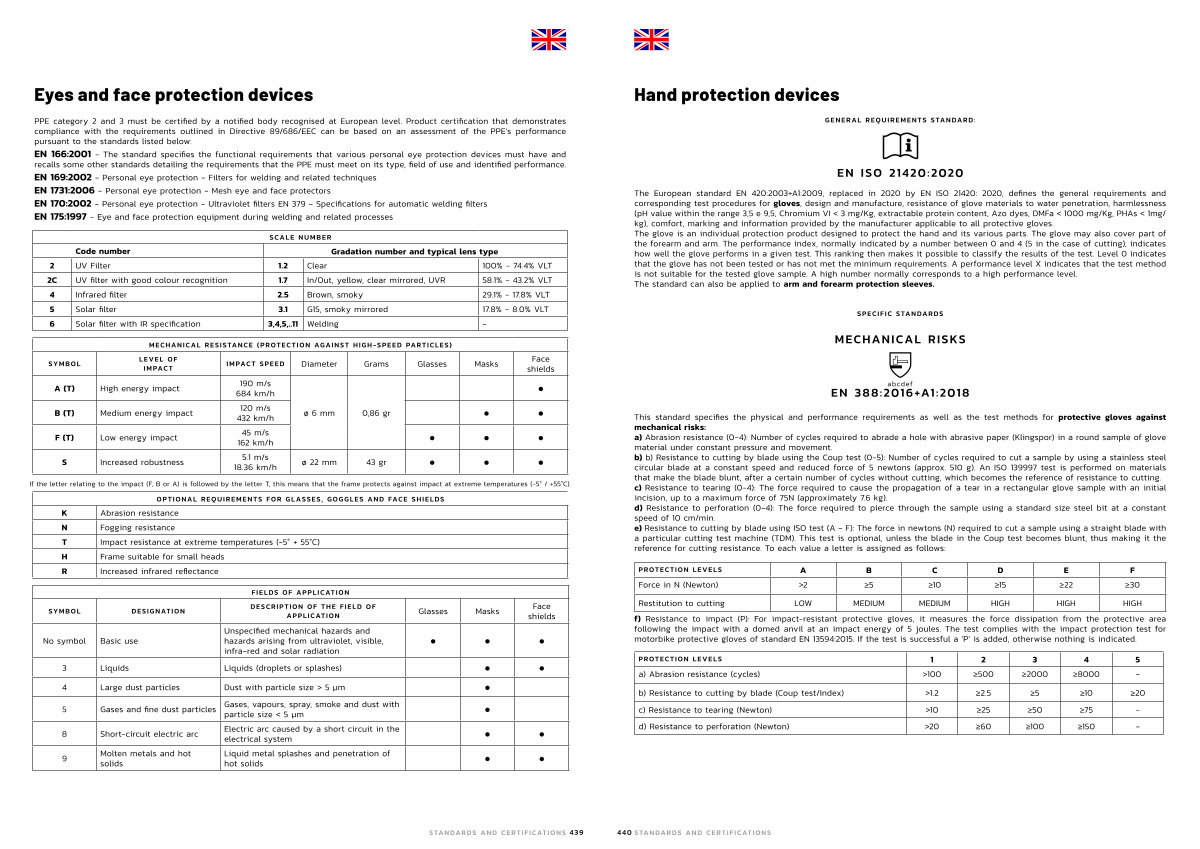

Eyes and face protection devices
Eyes and face protection devices
PPE category 2 and 3 must be certified by a notified body recognised at European level. Product certification that demonstrates compliance with the requirements outlined in Directive 89 / 686 / EEC can be based on an assessment of the PPE ' s performance pursuant to the standards listed below:
EN 166:2001- The standard specifies the functional requirements that various personal eye protection devices must have and recalls some other standards detailing the requirements that the PPE must meet on its type, field of use and identified performance.
EN 169:2002- Personal eye protection- Filters for welding and related techniques EN 1731:2006- Personal eye protection- Mesh eye and face protectors EN 170:2002- Personal eye protection- Ultraviolet filters EN 379- Specifications for automatic welding filters EN 175:1997- Eye and face protection equipment during welding and related processes
SCALE NUMBER |
|
Code number |
|
|
Gradation number and typical lens type |
2 |
UV Filter |
1.2 |
Clear |
100 %- 74.4 % VLT |
2C |
UV filter with good colour recognition |
1.7 |
In / Out, yellow, clear mirrored, UVR |
58.1 %- 43.2 % VLT |
4 |
Infrared filter |
2.5 |
Brown, smoky |
29.1 %- 17.8 % VLT |
5 |
Solar filter |
3.1 |
G15, smoky mirrored |
17.8 %- 8.0 % VLT |
6 |
Solar filter with IR specification |
3,4,5,.. 11 |
Welding |
- |
SYMBOL
A( T)
B( T)
F( T)
S
LEVEL OF IMPACT
High energy impact
Medium energy impact
Low energy impact
Increased robustness
MECHANICAL RESISTANCE( PROTECTION AGAINST HIGH-SPEED PARTICLES)
IMPACT SPEED |
Diameter |
Grams |
Glasses |
Masks |
Face shields |
|
190 m / s
684 km / h
|
|
|
|
|
• |
|
120 m / s
432 km / h
|
ø 6 mm
0,86 gr
• •
|
45 m / s 162 km / h • • •
5.1 m / s 18.36 km / h ø 22 mm 43 gr • • •
If the letter relating to the impact( F, B or A) is followed by the letter T, this means that the frame protects against impact at extreme temperatures(-5 ° / + 55 ° C).
OPTIONAL REQUIREMENTS FOR GLASSES, GOGGLES AND FACE SHIELDS K Abrasion resistance N Fogging resistance T Impact resistance at extreme temperatures(-5 ° + 55 ° C) H Frame suitable for small heads R Increased infrared reflectance
SYMBOL
No symbol
Basic use
DESIGNATION
DESCRIPTION OF THE FIELD OF APPLICATION
Unspecified mechanical hazards and hazards arising from ultraviolet, visible, infra-red and solar radiation
Glasses Masks
Face shields
• • •
3 Liquids Liquids( droplets or splashes) • • 4 Large dust particles Dust with particle size > 5 μm •
5 Gases and fine dust particles
8 Short-circuit electric arc
9
Molten metals and hot solids
FIELDS OF APPLICATION
Gases, vapours, spray, smoke and dust with particle size < 5 μm
•
Electric arc caused by a short circuit in the electrical system • •
Liquid metal splashes and penetration of hot solids • •
STANDARDS AND CERTIFICATIONS 439
