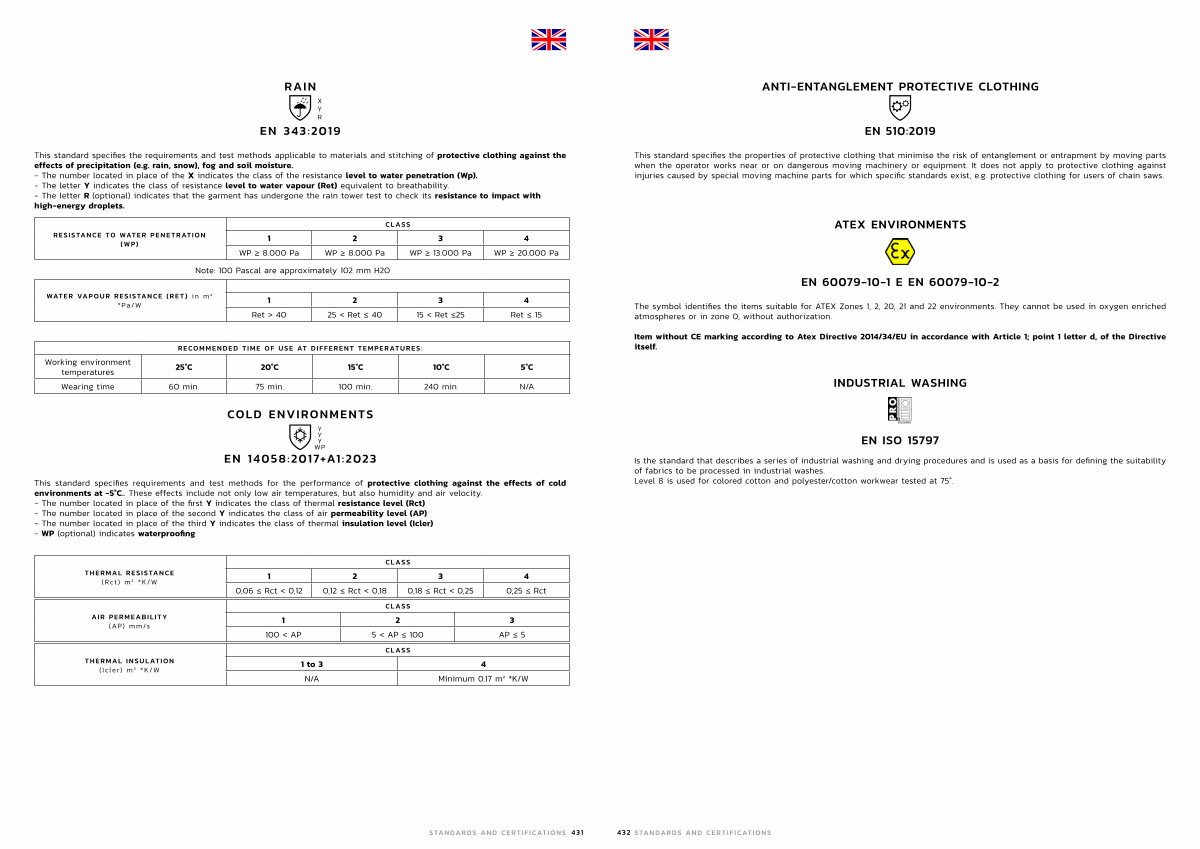

RAIN
EN 343:2019
This standard specifies the requirements and test methods applicable to materials and stitching of protective clothing against the effects of precipitation( e. g. rain, snow), fog and soil moisture.- The number located in place of the X indicates the class of the resistance level to water penetration( Wp).- The letter Y indicates the class of resistance level to water vapour( Ret) equivalent to breathability.- The letter R( optional) indicates that the garment has undergone the rain tower test to check its resistance to impact with high-energy droplets.
X Y R
RESISTANCE TO WATER PENETRATION( WP)
CLASS |
1 |
2 |
3 |
4 |
WP ≥ 8.000 Pa |
WP ≥ 8.000 Pa |
WP ≥ 13.000 Pa |
WP ≥ 20.000 Pa |
Note: 100 Pascal are approximately 102 mm H2O
WATER VAPOUR RESISTANCE( RET) i n m ² * Pa / W
1 |
2 |
3 |
4 |
Ret > 40 |
25 < Ret ≤ 40 |
15 < Ret ≤25 |
Ret ≤ 15 |
RECOMMENDED TIME OF USE AT DIFFERENT TEMPERATURES: |
Working environment temperatures |
25 ° C |
20 ° C |
15 ° C |
10 ° C |
5 ° C |
Wearing time |
60 min. |
75 min. |
100 min. |
240 min. |
N / A |
COLD ENVIRONMENTS
EN 14058:2017 + A1:2023
This standard specifies requirements and test methods for the performance of protective clothing against the effects of cold environments at-5 ° C.. These effects include not only low air temperatures, but also humidity and air velocity.- The number located in place of the first Y indicates the class of thermal resistance level( Rct)- The number located in place of the second Y indicates the class of air permeability level( AP)- The number located in place of the third Y indicates the class of thermal insulation level( Icler)- WP( optional) indicates waterproofing
Y Y Y WP
THERMAL RESISTANCE( Rct) m ² * K / W
AIR PERMEABILITY( AP) mm / s
THERMAL INSULATION( Icler) m ² * K / W
CLASS |
1 |
2 |
3 |
4 |
0,06 ≤ Rct < 0,12 |
0,12 ≤ Rct < 0,18 |
0,18 ≤ Rct < 0,25 |
0,25 ≤ Rct |
|
CLASS |
|
1 |
2 |
3 |
100 < AP |
5 < AP ≤ 100 |
AP ≤ 5 |
|
CLASS |
|
1 to 3 |
4 |
N / A |
Minimum 0.17 m ² * K / W |
STANDARDS AND CERTIFICATIONS 431
