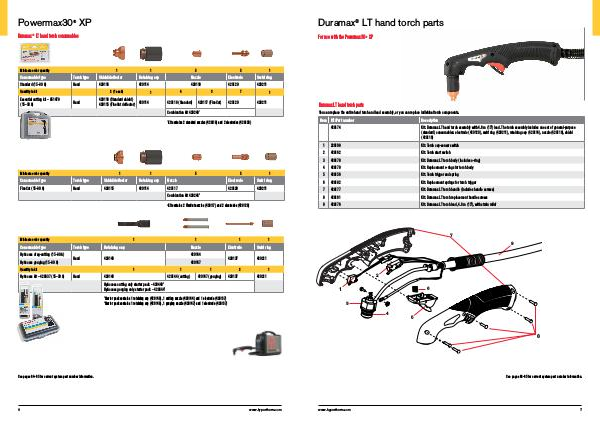

Duramax ® LT hand torch parts
For use with the Powermax30 ® XP
Duramax LT hand torch parts
You can replace the entire hand torch and lead assembly, or you can replace individual torch components.
Item Kit/Part number
Description
428174 Kit: Duramax LT hand torch assembly with 4.6 m (15') lead. The torch assembly includes one set of general-purpose
(standard) consumables: electrode (420120), swirl ring (420211), retaining cap (420114), nozzle (420118), shield
(420116)
1 228109 Kit: Torch cap-sensor switch
2 428162 Kit: Torch start switch
3 428178 Kit: Duramax LT torch body (includes o-ring)
4 428179 Kit: Replacement o-rings for torch body
5 428156 Kit: Torch trigger and spring
6 428182 Kit: Replacement springs for torch trigger
7 428177 Kit: Duramax LT torch handle (includes handle screws)
8 428181 Kit: Duramax LT torch replacement handle screws
9 428176 Kit: Duramax LT torch lead, 4.6 m (15'), with strain relief
7
9
2
1
6
3
4
5
8
See pages 64–65 for current system part number information.
