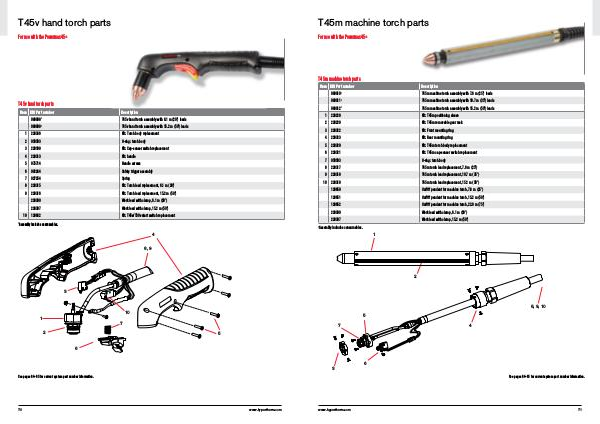

T45v hand torch parts
For use with the Powermax45 ®
T45v hand torch parts
Item Kit/Part number
Description
088008 1 T45v hand torch assembly with 6.1 m (20') leads
088009 1 T45v hand torch assembly with 15.2 m (50') leads
1 228346 Kit: Torch body replacement
2 058503 O-ring: torch body
3 228109 Kit: Cap-sensor switch replacement
4 228313 Kit: handle
5 075714 Handle screws
6 002244 Safety trigger assembly
7 027254 Spring
8 228315 Kit: Torch lead replacement, 6.1 m (20')
9 228316 Kit: Torch lead replacement, 15.2 m (50')
228300 Work lead with clamp, 6.1 m (20')
228307 Work lead with clamp, 15.2 m (50')
10 128642
Kit: T45v/T30v start switch replacement
Assembly includes consumables.
1
4
8, 9
3
10
1
7
2
5
6
See pages 64–65 for current system part number information.
70 www.hypertherm.com
