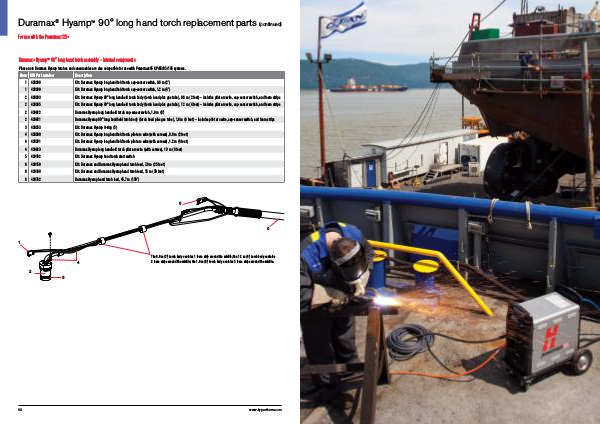

Duramax ® Hyamp ™ 90° long hand torch replacement parts (continued)
For use with the Powermax125 ®
Duramax ® Hyamp ™ 90° long hand torch assembly – internal components
Please note Duramax Hyamp torches and consumables are also compatible for use with Powermax45 XP/65/85/105 systems.
Item Kit/Part number
Description
1 428288 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 0.6 m (2')
1 428289 Kit: Duramax Hyamp long handheld torch cap-sensor switch, 1.2 m (4')
2 428283 Kit: Duramax Hyamp 90° long handheld torch body (torch head plus gas tube), 0.6 m (2 feet) – includes pilot arc wire, cap-sensor switch, and foam strips
2 428285 Kit: Duramax Hyamp 90° long handheld torch body (torch head plus gas tube), 1.2 m (4 feet) – includes pilot arc wire, cap-sensor switch, and foam strips
2 428822 Duramax Hyamp long handheld torch cap-sensor switch, 1.8 m (6')
2 428821 Duramax Hyamp 90° long handheld torch body (torch head plus gas tube), 1.8 m (6 feet) – includes pilot arc wire, cap-sensor switch, and foam strips
3 428253 Kit: Duramax Hyamp O-ring (5)
4 428290 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 0.6 m (2 feet)
4 428291 Kit: Duramax Hyamp long handheld torch pilot arc wire (with screws), 1.2 m (4 feet)
4 428823 Duramax Hyamp long handheld torch pilot arc wire (with screws), 1.8 m (6 feet)
5 428162 Kit: Duramax Hyamp hand torch start switch
6 428159 Kit: Duramax and Duramax Hyamp hand torch lead, 7.6 m (25 feet)
6 428160 Kit: Duramax and Duramax Hyamp hand torch lead, 15 m (50 feet)
6 428762 Duramax Hyamp hand torch lead, 45.7 m (150')
5
6
1
4
The 0.6 m (2') torch body contains 1 foam strip around the middle; the 1.2 m (4') torch body contains
2 foam strips around the middle; the 1.8 m (6') torch body contains 3 foam strips around the middle.
2
3
