Duramax ® Hyamp ™ 180° robotic torch parts
For use with the Powermax125 ®

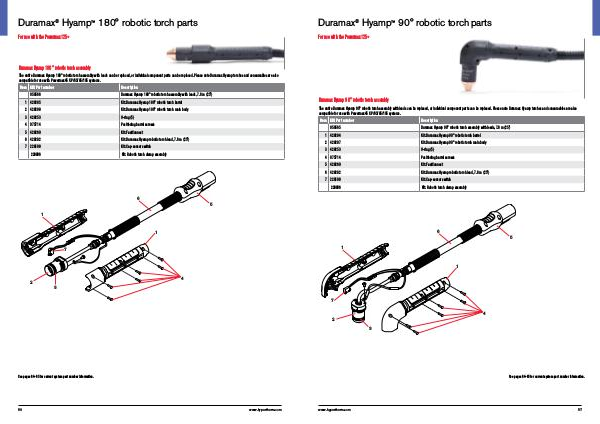

Duramax Hyamp 180° robotic torch assembly
The entire Duramax Hyamp 180° robotic torch assembly with leads can be replaced, or individual component parts can be replaced. Please note Duramax Hyamp torches and consumables are also
compatible for use with Powermax45 XP/65/85/105 systems.
Item Kit/Part number
Description
059566
Duramax Hyamp 180° robotic torch assembly with leads, 7.6 m (25')
1 428295
Kit: Duramax Hyamp 180° robotic torch barrel
2 428298 Kit: Duramax Hyamp 180° robotic torch main body
3 428253 O-ring (5)
4 075714 Positioning barrel screws
5 428260 Kit: FastConnect
6 428292 Kit: Duramax Hyamp robotic torch lead, 7.6 m (25')
7 228109 Kit: Cap-sensor switch
228806
Kit: Robotic torch clamp assembly
6
5
1
1
7
2
4
3
See pages 64–65 for current system part number information.
56 www.hypertherm.com
