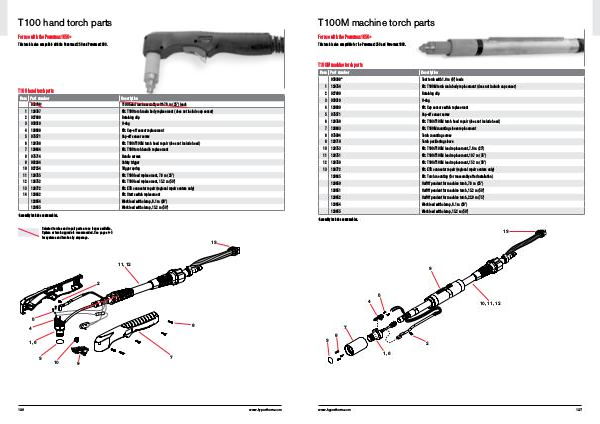

T100 hand torch parts
For use with the Powermax1650 ®
This torch is also compatible with the Powermax1250 and Powermax1000.
T100 hand torch parts
Item Part number
059498 1
1 128767
2 027889
3 058519
4 128639
5 075571
6 128768
7 128644
8 075714
9 002244
10 027254
11 128755
12 128752
13 128772
14 128642
123654
123655
Description
T100 hand torch assembly with 7.6 m (25') leads
Kit: T100 torch main body replacement (does not include cap sensor)
Retaining clip
O-ring
Kit: Cap-off sensor replacement
Cap-off sensor screw
Kit: T100/T100M torch head repair (does not include head)
Kit: T100 torch handle replacement
Handle screws
Safety trigger
Trigger spring
Kit: T100 lead replacement, 7.6 m (25')
Kit: T100 lead replacement, 15.2 m (50')
Kit: ETR connector repair (regional repair centers only)
Kit: Start switch replacement
Work lead with clamp, 6.1 m (20')
Work lead with clamp, 15.2 m (50')
Assembly includes consumables.
1
Selected torches and repair parts are no longer available.
System or torch upgrade is recommended. See pages 4–5
for systems and torches by amperage.
13
11, 12
2
14
5
8
4
1, 6
3
10
7
9
126 www.hypertherm.com
