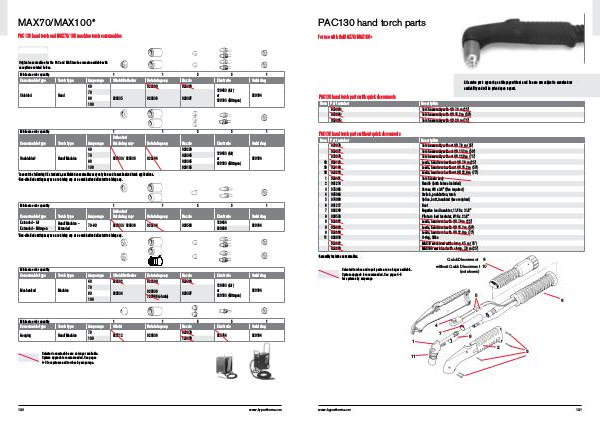

PAC130 hand torch parts
For use with theMAX70/MAX100 ®
All service parts appearing on this page without a red line are now subject to manufacturer
availability and will be priced upon request.
PAC130 hand torch parts with quick disconnects
Item Part number
059093 1
059094 1
059095 1
Description
Torch assembly with QD 7.6 m (25')
Torch assembly with QD 15.2 m (50')
Torch assembly with QD 2.8 m (75')
PAC130 hand torch parts without quick disconnects
Item Part number
059076
059077
059079
10 029198
10 029199
10 029229
1 020461
2 001214
3 075365
4 005094
5 074069
6 001217
7 024249
8 020536
9 029667
9 029668
9 029669
11 026018
023682
023209
Description
Torch assembly without QD 7.6 m (25')
Torch assembly without QD 15.2 m (50')
Torch assembly without QD 22.8 m (75')
Leads, hand torch without QD 7.6 m (25')
Leads, hand torch without QD 15.2 m (50')
Leads, hand torch without QD 22.8 m (75')
Torch main body
Handle (both halves included)
Screw, #6 x 3⁄4" (five required)
Switch, pushbutton, torch
Splice, butt, insulated (two required)
Boot
Negative lead insulator, 11⁄16 x 3 1⁄2"
Pilot arc lead insulator, 9⁄16 x 2 1⁄2"
Leads, hand torch with QD 7.6 m (25')
Leads, hand torch with QD 15.2 m (50')
Leads, hand torch with QD 22.8 m (75')
O-ring, Silico
MAX70 work lead with clamp, 4.5 m (15')
MAX100 work lead with clamp, 7.6 m (25')
Assembly includes consumables.
1
Quick Disconnect
9
without Quick Disconnect 10
(not shown)
Selected torches and repair parts are no longer available.
System upgrade is recommended. See pages 4–5
for systems by amperage
5
6
4
7
1
8
2
11
www.hypertherm.com
3
