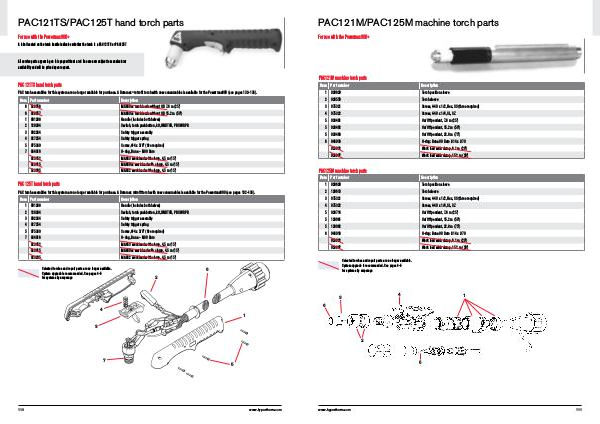

PAC121M/PAC125M machine torch parts
For use with the Powermax800 ®
PAC121M machine torch parts
Item Part number
Description
1 020620 Torch position sleeve
2 020559 Torch sleeve
3 075321 Screw, 4-40 x 1/2, Hex, SS (three required)
4 075322 Screw, 4-40 x 1/4, SL, SZ
5 028461 On/Off pendant, 7.6 m (25')
5 028462 On/Off pendant, 15.2 m (50')
5 028463 On/Off pendant, 22.8 m (75')
6 044016 O-ring: Buna 90 Duro .614 x .070
023922 Work lead with clamp, 6.1 m (20')
028907 Work lead with clamp, 15.2 m (50')
PAC125M machine torch parts
Item Part number
Description
1 020620 Torch position sleeve
2 120613 Torch sleeve
3 075321 Screw, 4-40 x 1/2, Hex, SS (three required)
4 075322 Screw, 4-40 x 1/4, SL, SZ
5 028714 On/Off pendant, 7.6 m (25')
5 128061 On/Off pendant, 15.2 m (50')
5 128062 On/Off pendant, 22.8 m (75')
6 044016 O-ring: Buna 90 Duro .614 x .070
023922 Work lead with clamp, 6.1 m (20')
028907 Work lead with clamp, 15.2 m (50')
Selected torches and repair parts are no longer available.
System upgrade is recommended. See pages 4–5
for systems by amperage
4
3
1
6
2
5
