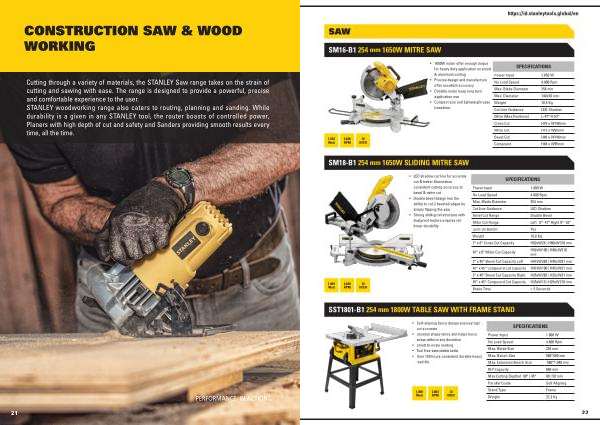

• 1650W motor offer enough torque for heavy duty application on wood & aluminum cutting
• Precise design and manufacture offer excellent accuracy
• Durable motor keep long term application use
• Compact size and lightweight easy transform
Power Input
No Load Speed
Max . Blade Diameter
Max . Diameter
Weight
Cut Line Guidance
SPECIFICATIONS
1.650 W
4.800 Rpm
254 mm
140x70 mm
10,5 Kg
LED Shadow
| ||||
Mitre ( Max . Positions ) L-47 ° R-52 ° |
Cross Cut |
H75 x W140mm |
||||||
Mitre Cut |
H75 x W95mm |
||||||
1.650 Watt |
4.800 RPM |
10 INCH |
Bevel Cut
Compound
|
H48 x W140mm
H48 x W95mm
|
|
• LED shadow cut line for accurate cut & better illumination consistent cutting accuracy at bevel & mitre cut
• Double bevel design has the ability to cut 2 beveled edges by simply flipping the saw
• Strong sliding rail structure with dustproof feature ensures rail linear durability
|
Power Input
No Load Speed
Max . Blade Diameter
Cut Line Guidance
Bevel Cut Range
SPECIFICATIONS
1.800 W
4.800 Rpm
254 mm
LED Shadow
Double Bevel
Miter Cut Range Left 0 ° - 47 ° Right 0 ° - 52 °
Lock-On Button
Yes
|
|||
Weight |
18,6 Kg |
|||
0 ° x 0 ° Cross Cut Capacity H92xW28 | H80xW310 mm |
||||
|
45 ° x 0 ° Mitre Cut Capacity
H92xW190 | H80xW210 mm
0 ° x 45 ° Bevel Cut Capacity Left H47xW285 | H45xW31 mm
|
||||
45 ° x 45 ° Compound Cut Capacity H47xW190 | H45xW21 mm |
||||
0 ° x 45 ° Bevel Cut Capacity Right H35xW285 | H25xW31 mm |
||||
1.800 Watt |
4.800 RPM |
10 INCH |
45 ° x 45 ° Compound Cut Capacity H35xW19 | H25xW210 mm
Brake Time
< 5 Seconds
|
|
SPECIFICATIONS | |
Power Input |
1.800 W |
No Load Speed |
4.800 Rpm |
Max . Blade Size |
254 mm |
Max . Bench Size |
560 * 680 mm |
Max . Extension Bench Size |
560 * 1.040 mm |
RIP Capacity |
660 mm |
Max Cutting Depthat 90 ° | 45 ° |
80 | 50 mm |
Parallel Guide |
Self Aligning |
Stand Type |
Frame |
Weight |
27,2 Kg |
