Catalog Dewalt 2024 | Page 85

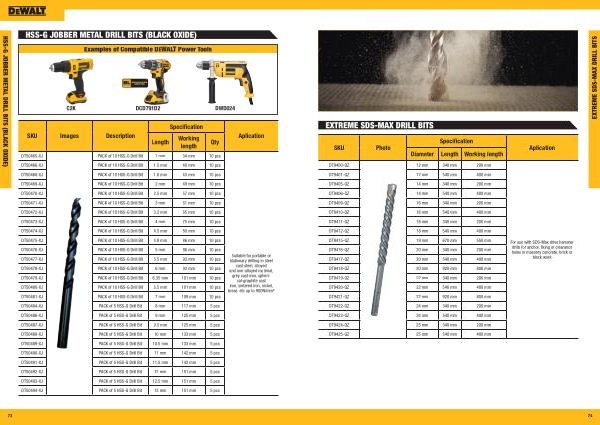

EXTREME SDS-MAX DRILL BITS

EXTREME SDS-MAX DRILL BITS

SKU


Specification

Diameter Length Working length

Aplication

DT9400-QZ	12 mm	340 mm	200 mm
DT9401-QZ	12 mm	540 mm	400 mm
DT9405-QZ	14 mm	340 mm	200 mm
DT9406-QZ	14 mm	540 mm	400 mm
DT9409-QZ	16 mm	340 mm	200 mm
DT9410-QZ	16 mm	540 mm	400 mm
DT9411-QZ	18 mm	340 mm	200 mm
DT9412-QZ	18 mm	540 mm	400 mm

DT9415-QZ	19 mm	670 mm	550 mm
DT9416-QZ	20 mm	340 mm	200 mm
DT9417-QZ	20 mm	540 mm	400 mm
DT9418-QZ	20 mm	920 mm	800 mm
DT9419-QZ	22 mm	340 mm	200 mm
DT9420-QZ	22 mm	540 mm	400 mm
DT9421-QZ	22 mm	920 mm	800 mm
DT9422-QZ	24 mm	340 mm	200 mm
DT9423-QZ	24 mm	540 mm	400 mm
DT9424-QZ	25 mm	340 mm	200 mm
DT9425-QZ	25 mm	540 mm	400 mm

For use with SDS-Max drive hammer drills for anchor , fixing or clearance holes in masonry concrete , brick or block work

74
