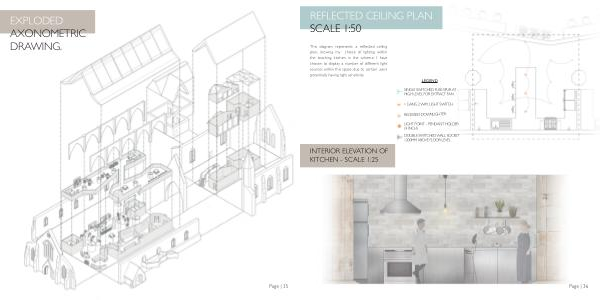

REFLECTED CEILING PLAN
SCALE 1:50
This diagram represents a reflected ceiling
plan, showing my choice of lighting within
the teaching kitchen in the scheme. I have
chosen to display a number of different light
sources within this space, due to certain users
potentially having light sensitivity.
LEGEND
SINGLE SWITCHED FUSE SPUR AT
HIGH LEVEL FOR EXTRACT FAN
1 GANG 2 WAY LIGHT SWITCH
RECESSED DOWNLIGHTER
LIGHT POINT - PENDANT HOLDER
(4 INCH)
DOUBLE SWITCHED WALL SOCKET
1200MM ABOVE FLOOR LEVEL
INTERIOR ELEVATION OF
KITCHEN - SCALE 1:25
