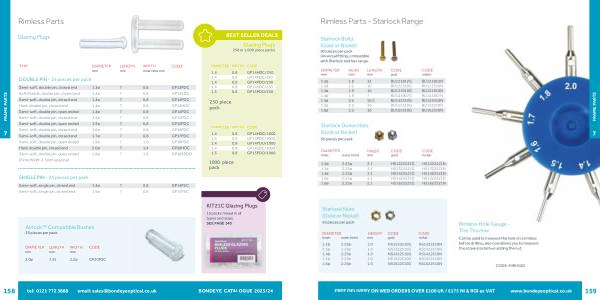

Rimless Parts - Starlock Range
Starlock Bolts ( Gold or Nickel )
50 pieces per pack Universal fitting , compatible with Starlock and hex range .
DIAMETER
HEAD
LENGTH
CODE
CODE
mm
mm
mm
gold
nickel
1.2ø
1.8
12
BU121812G
BU121812N
1.2ø
2.5
10
BU122510G
BU122510N
1.3ø
1.9
10
BU131910G
BU131910N
1.4ø
1.9
7
BU141907G
BU141907N
1.4ø
2.5
10 . 5
BU142510G
BU142510N
1.5ø
2.5
10
BU152510G
BU152510N
1.6ø
2.5
10
BU162510G
BU162510N
Starlock Dome Hats ( Gold or Nickel )
50 pieces per pack
FRAME PARTS
7
DIAMETER
Height
CODE
CODE
inner
outer ( mm )
mm
gold
nickel
1.2ø
2.25ø
2.1
HS1222521G
HS1222521N
1.3ø
2.25ø
2.1
HS1322521G
HS1322521N
1.4ø
2.25ø
2.1
HS1422521G
HS1422521N
1.5ø
2.25ø
2.1
HS1522521G
HS1522521N
1.6ø
2.25ø
2.1
HS1622521G
HS1622521N
Starlock Nuts ( Gold or Nickel )
50 pieces per pack
DIAMETER HEIGHT CODE CODE inner outer ( mm ) mm gold nickel
1.2ø
2.25ø
1.0
NS1222510G
NS1222510N
1.3ø
2.25ø
1.0
NS1322510G
NS1322510N
1.4ø
2.25ø
1.0
NS1422510G
NS1422510N
1.5ø
2.25ø
1.0
NS1522510G
NS1522510N
1.6ø
2.25ø
1.0
NS1622510G
NS1622510N
Rimless Hole Gauge - The Thurlow
Can be used to measure the hole on a rimless before drilling , also now allows you to measure the screw size before adding the nut .
CODE : MIRHG02
