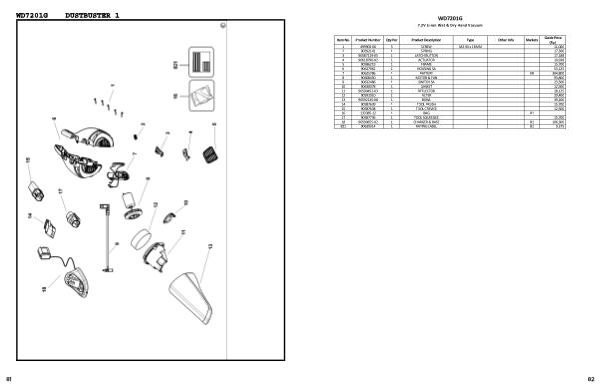

Black+Decker Spare Part E-Book | Page 85

WD7201G
7.2V Li-ion Wet & Dry Hand Vacuum
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 499903-00 5 SCREW M2.94 x 18MM 11,000
2 90592141 1 SPRING 17,300
3 90587119-05 1 LATCH BUTTON 17,188
4 90618790-02 1 ACTUATOR 10,938
5 90586219 1 FRAME 15,700
6 90627962 1 HOUSING SA 53,125
7 90625786 1 BATTERY KR 304,800
8 90608450 1 MOTOR & FAN 93,800
9 90632486 1 SWITCH SA 23,500
10 90630078 1 GASKET 12,500
11 90590452-03 1 DEFLECTOR 28,125
12 90591010 1 FILTER 20,400
13 90592130-08 1 BOWL 39,200
14 90587639 1 TOOL BRUSH 15,700
15 90587638 1 TOOL CREVICE 12,500
16 133385-12 1 BAG B1
17 90587736 1 TOOL SQUEEGEE 15,700
18 90590655-02 1 CHARGER & BASE B1 106,300
821 90639314 1 RATING LABEL B1 9,375
82
