Black+Decker Spare Part E-Book | Page 77

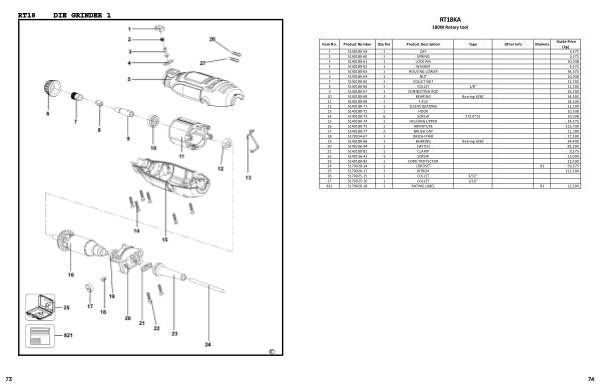

RT18KA
180W Rotary tool
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 5140180-59 1 CAP 9,375
2 5140180-60 1 SPRING 9,375
3 5140180-61 1 LOCK PIN 10,938
4 5140180-62 1 WASHER 9,375
5 5140180-63 1 HOUSING LOWER 34,375
6 5140180-64 1 NUT 10,938
7 5140180-65 1 COLLET NUT 15,700
8 5140180-66 1 COLLET 1/8’’ 12,500
9 5140180-67 1 CONNECTING ROD 26,700
10 5140180-68 2 BEARING Bearing 626Z 34,400
11 5140180-69 1 FIELD 64,200
12 5140180-71 1 SLEEVE BEARING 12,500
13 5140180-72 1 HOOK 10,938
14 5140180-73 6 SCREW ST2.9*16 10,938
15 5140180-74 1 HOUSING UPPER 34,375
16 5140180-75 1 ARMATURE 115,700
17 5140180-77 2 BRUSH CAP 11,000
18 5170034-67 1 BRUSH PAIR 17,300
19 5140180-68 1 BEARING Bearing 626Z 34,400
20 5140206-94 1 SWITCH 81,300
21 5140180-81 1 CLAMP 9,375
22 5140136-43 1 SCREW 11,000
23 5140180-82 1 CORD PROTECTOR 12,500
24 5170020-14 1 CORDSET B1 59,375
25 5170020-17 1 KITBOX 112,500
26 5170025-15 1 COLLET 3/32”
27 5170025-16 1 COLLET 1/16“
821 5170020-18 1 RATING LABEL B1 12,500
74
