Black+Decker Spare Part E-Book | Page 61

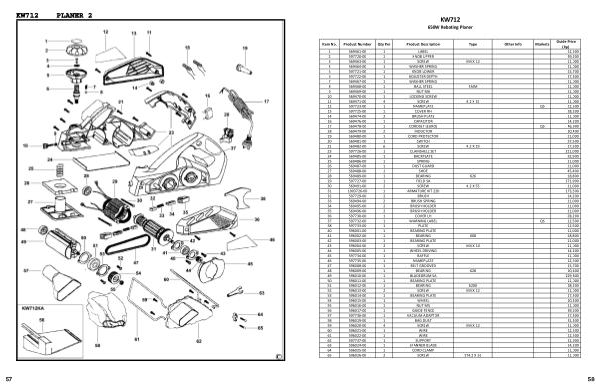

KW712
650W Rebating Planer
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 569461-00 1 LABEL 12,500
2 597720-00 1 KNOB UPPER 39,200
3 569463-00 1 SCREW M4 X 12 11,000
4 569464-00 1 WASHER SPRING 11,000
5 597721-00 1 KNOB LOWER 15,700
6 597722-00 1 ADJUSTER DEPTH 17,300
7 569467-00 1 WASHER SPRING 11,000
8 569468-00 1 BALL STEEL 3MM 11,000
9 569469-00 1 NUT M6 11,000
10 569470-00 1 LOCKING SCREW 11,000
11 569471-00 4 SCREW 4.2 X 19 11,000
12 597723-00 1 NAMEPLATE QS 12,500
13 597725-00 1 COVER RH 28,200
14 569474-00 2 BRUSH PLATE 11,000
16 569476-00 1 CAPACITOR 14,200
17 569478-00 1 CORDSET (EURO) QS 46,900
18 569479-00 2 INDUCTOR 20,400
19 569480-00 1 CORD PROTECTOR 11,000
20 569481-00 1 SWITCH 37,500
21 569482-00 6 SCREW 4.2 X 19 17,300
23 597726-00 1 CLAMSHELL SET 211,000
24 569485-00 1 BACKPLATE 32,900
25 569486-00 1 SPRING 11,000
26 569487-00 1 DUST GUARD 11,000
27 569488-00 1 SHOE 45,400
28 569489-00 1 BEARING 626 18,800
29 597727-00 1 FIELD SA 171,900
30 569491-00 2 SCREW 4.2 X 55 11,000
31 1003726-00 1 ARMATURE KIT 220 173,500
32 597729-00 2 BRUSH 14,200
33 569494-00 2 BRUSH SPRING 11,000
34 569495-00 2 BRUSH HOLDER 11,000
35 569496-00 2 BRUSH HOLDER 11,000
36 597730-00 1 COVER LH 28,200
37 597732-00 1 WARNING LABEL QS 12,500
38 597733-00 1 PLATE 12,500
40 596001-00 1 BEARING PLATE 11,000
41 596002-00 1 BEARING 608 18,800
42 596003-00 1 BEARING PLATE 11,000
43 596004-00 2 SCREW M4 X 10 11,000
44 596005-00 1 WHEEL DRIVING 14,200
45 597734-00 1 BAFFLE 11,000
46 597735-00 1 NAMEPLATE 12,500
47 596008-00 1 BELT GROOVED 15,700
48 596009-00 1 BEARING 628 20,400
49 596010-00 1 BLADEDRUM SA 229,800
50 596011-00 1 BEARING PLATE 11,000
51 596012-00 1 BEARING 6200 28,200
52 596013-00 2 SCREW M4 X 12 11,000
53 596014-00 1 BEARING PLATE 17,300
54 596015-00 1 WHEEL 20,400
55 596016-00 1 NUT M5 11,000
56 596017-00 1 GUIDE FENCE 39,200
57 597736-00 1 VACUUM ADAPTOR 17,300
58 596019-00 1 BAG DUST 31,300
59 596020-00 4 SCREW M4 X 12 11,000
60 596021-00 1 WIRE 12,500
61 596022-00 1 WIRE 12,500
62 597737-00 1 SUPPORT 21,900
63 596024-00 1 SPANNER BLADE 14,200
64 596025-00 1 CORD CLAMP 11,000
65 596026-00 2 SCREW ST4.2 X 16 11,000
58
