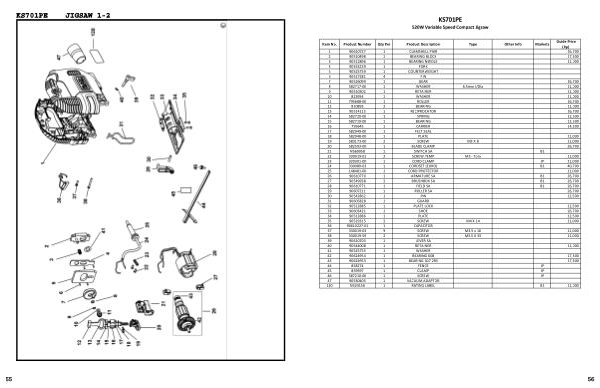

KS701PE
520W Variable Speed Compact Jigsaw
Item No. Product Number Qty Per Product Description Type Other Info Markets
Guide Price
(Rp)
1 90610727 1 CLAMSHELL PAIR 26,700
2 90510498 1 BEARING BLOCK 17,300
3 90512896 1 BEARING NEEDLE 11,000
4 90553239 1 FORK
5 90525759 1 COUNTERWEIGHT
6 90517281 4 PIN
7 90526099 1 GEAR 26,700
8 582717-00 1 WASHER 6.5mm I/Dia 11,000
9 90510502 1 RETAINER 11,000
10 823954 1 WASHER 11,000
11 795688-00 1 ROLLER 26,700
12 810893 2 BEARING 11,000
13 90514115 1 RECIPROCATOR 26,700
14 582720-00 1 SPRING 12,500
15 582719-00 1 BEARING 12,500
16 795645 1 CARRIER 14,200
17 582949-00 1 FELT SEAL
18 582948-00 1 PLATE 11,000
19 583173-00 2 SCREW M3 X 8 11,000
20 582593-00 1 BLADE CLAMP 26,700
21 N569958 1 SWITCH SA B1
22 330019-01 2 SCREW.TEMP M3 - Torx 11,000
23 329301-00 1 CORD CLAMP JP 11,000
24 330080-63 1 CORDSET (EURO) B1 40,700
25 148481-00 1 CORD PROTECTOR 11,000
26 90610770 1 ARMATURE SA B1 26,700
27 90549938 2 BRUSHBOX SA B1 26,700
28 90610771 1 FIELD SA B1 26,700
29 90607211 1 ROLLER SA 26,700
30 90542862 1 PIN 12,500
31 90605828 1 GUARD
32 90512885 1 PLATE LOCK 12,500
33 90603421 1 SHOE 26,700
34 90512886 1 PLATE 12,500
35 90519315 2 SCREW M4 X 14 11,000
36 90610227-01 1 CAPACITOR
37 330019-03 9 SCREW M3.5 x 16 11,000
38 330019-59 2 SCREW M3.5 X 35 11,000
39 90610703 1 LEVER SA
40 90544008 1 RETAINER 11,000
41 90525755 1 WASHER
42 90624954 1 BEARING 608 17,300
43 90624953 1 BEARING 607 2RS 17,300
44 858274 1 FENCE JP
45 859597 1 CLAMP JP
46 587210-00 1 SCREW JP
47 90530405 1 VACUUM ADAPTOR
120 N524156 1 RATING LABEL B1 11,000
